ANSI 61, 372|ASME A112.18.1|ASSE 1010|CSA B125.1|IAPMO Approved|NSF Certified|UPC Certified

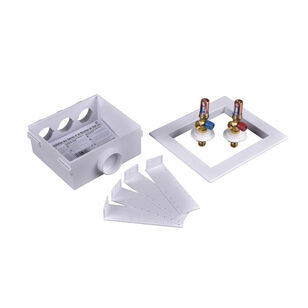

• Connects to PEX supply line with F1807 connection QUADTRO® residential and commercial washing machine outlet box 2 in drain opening fits PVC or ABS SCH 40 DWV pipe Easy-to-remove 1/4-turn knockout Snap-on faceplate frame accommodates up to 1 in drywall Box made of high-impact polystyrene Four support brackets included for mounting Two proprietary lock and load 1/4-turn valves enable left, right or center positioning of the drain pipe Four openings accommodate - a hot water PEX-compatible valve, a cold-water PEX-compatible valve, PVC or ABS SCH 40 drain pipe for connection to your DWV system and the option for top down supply line installation

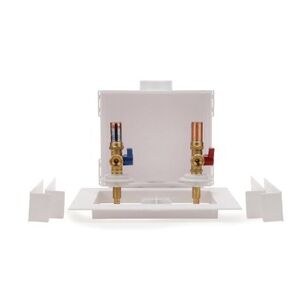

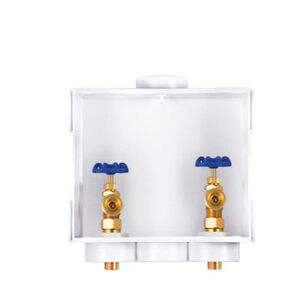

Oatey® QUADTRO® washing machine outlet boxes are made for commercial or residential applications which require supply valves and waste drain recessed into the wall. The proprietary lock and load valves enable left, right or center positioning of the drain pipe. this easy-to-install box includes all necessary support brackets to mount the water supply valves from the top or bottom. Oatey® products have earned the trust of plumbing professionals for over 100 years.
