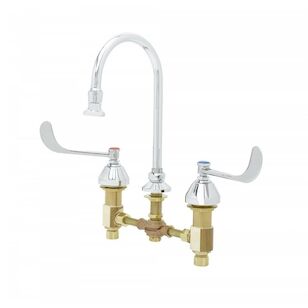

T&S B-0866 Adjustable Centers Mixing Faucet, 2.2 gpm, 5-5/16 in H Spout, 8 in Faucet Center, Chrome-Plated, Domestic
T&S B-0866 Adjustable Centers Mixing Faucet, 2.2 gpm, 5-5/16 in H Spout, 8 in Faucet Center, Chrome-Plated, Domestic
T&S Adjustable Centers Mixing Faucet, Flow Control Device, Non-Aerated Spray Device, Rosespray Spray, 5-13/16 in Spout Reach, Gooseneck, Swivel Spout, 5-5/16 in Spout Height, Compression Cartridge, MNPSM Connection, 1/2 in Connection, 8 in Faucet Center, 20 to 125 psi, 2.2 gpm Flow Rate, Wrist Blade Handle, Brass Handle, 1-5/16 in Deck Thickness, Deck Mounting, Brass, Finish: Chrome-Plated, 40 to 140 deg F, 10-11/16 in H, Lead-Free, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$604.00Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandT&S Brass
Cartridge TypeCompression
Color/FinishChrome-Plated
Connection Size1/2
Connection TypeMNPSM
Deck Thickness1-5/16
Dimensions10-11/16 " H
Domestic/ImportDomestic
Faucet Center Size8
FinishChrome-Plated
Flow Rate2.2
Handle MaterialBrass
Handle TypeWrist Blade
MaterialBrass
Mounting TypeDeck
Pressure Rating20 to 125
Spout Height5-5/16
Spout Reach5-13/16
Spout TypeGooseneck, Swivel
spray_typeFlow Control Device, Non-Aerated Spray Device, Rosespray
Temperature Rating40 to 140
Weight6.56
Shipping Dimensions (L x W x H)16" x 4" x 11"
Additional Information
ADA Compliant|ASME A112.18.1|CSA B125.1|Buy American Act Compliant|NSF/ANSI 372|NSF/ANSI/CAN 61 Q=1
Features & Benefits
- 1/2" NPSM male inlets with coupling nuts 2.2 GPM Rosespray outlet, Series 1 5 13/16" swivel/rigid gooseneck 6" wrist action handles with color coded indexes 8" (max.) adjustable center, deck mount mixing faucet Material: Brass body, chrome plated metal escutcheons, chrome plated brass tubular spout & handles Quarter-turn Eterna compression cartridges w/ spring checks to prevent the cross flow of water
Marketing Information
8" adjustable center, deck mount mixing faucet, 5 13/16" swivel/rigid gooseneck with 2.2 GPM rosespray outlet, compression cartridges with spring checks, 6" wrist action handles, chrome plated escutcheons and 1/2" NPSM male inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
T&S B-0866 Adjustable Centers Mixing Faucet, 2.2 gpm, 5-5/16 in H Spout, 8 in Faucet Center, Chrome-Plated, Domestic
BrandT&S Brass
MFG #B-0866
Keller #1071681
My Part ##
Last Ordered#
$604.00Â /Â ea
