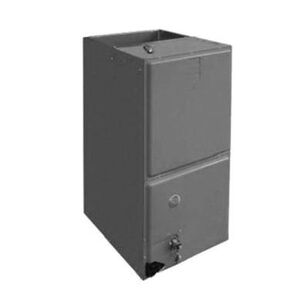

Rheem® Acclimate™ Series RH1Q4221STANJA Air Handler, 3.5 ton, 42000 Btu/hr Cooling, 42000 Btu/hr BTU, 800 to 1600 cfm
Rheem® Acclimate™ Series RH1Q4221STANJA Air Handler, 3.5 ton, 42000 Btu/hr Cooling, 42000 Btu/hr BTU, 800 to 1600 cfm
Rheem® Air Handler, RH1Q Series, 3.5 ton Nominal Capacity, 42000 Btu/hr Cooling Capacity, 42000 Btu/hr BTU Rating, 208/240 V Voltage Rating, 5.2 A Amperage Rating, 373 W Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 1075 rpm Rotational Speed, 800 to 1600 cfm Rating, Downflow, Horizontal Left, Horizontal Right, Upflow Configuration, 15 SEER Rating, Connection Type: NPT Female, R-410A Refrigerant Type, 15 A Fuse Rating, 3/4 in Connection, 3/8 in Liquid Line Size, 7/8 in Suction Line Size, 20 x 20 in Filter Size, 1 Number of Stages, 2 Number of Speeds, Constant Torque Motor Type, Steel, Pre-Painted, Gray, 50.5 in H x 21 in W x 21.69 in D Dimensions, Standard Coil Efficiency, TEV Metering Device, Non-Communication Controls Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,009.11 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationStandard Coil Efficiency, TEV Metering Device, Non-Communication Controls
Amperage Rating5.2
BTU Rating42000
CFM Rating800 to 1600
ColorGray
Color/FinishPre-Painted
ConfigurationDownflow, Horizontal Left, Horizontal Right, Upflow
Connection Size3/4
Connection TypeNPT Female
Cooling Capacity42000
Dimensions50.5 " H x 21 " W x 21.69 " D
Filter Size20 x 20
FinishPre-Painted
Frequency Rating60
Fuse Rating15
HP Rating1/2
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Motor TypeConstant Torque
Nominal Capacity3.5
Number of Speeds2
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed1075
SEER Rating15
SeriesRH1Q Series
Suction Line Size7/8
Voltage Rating208/240
Wattage373
Additional Information
AHRI Certified|cULus Listed
Features & Benefits
- Versatile 4-way convertible design for up flow, down flow, horizontal left and horizontal right applications Factory installed indoor coil Sturdy cabinet construction with 1 in of foil faced insulation for excellent sound and insulating characteristics Field installed auxiliary electric heater kits provide exact heat for indoor comfort, kits include circuit breakers which meet UL and cUL requirements for service disconnect All Models meet or exceed 330 to 400 cfm per ton at 0.3 in of external static pressure Enhanced airflow up to 0.7 in external static pressure Evaporator is constructed of aluminum fins bonded to internally grooved aluminum tubing Cabinet air leakage less than 2% at 1 in H2O when tested in accordance with ASHRAE Standard 193 Attractive pre-painted cabinet exterior Rugged wall steel cabinet construction, designed for added strength and versatility Traditional open wire element design for heat applications Three combustible floor base accessories fit all Model sizes when required for down flow installations on combustible floors Coils are constructed of aluminum fins bonded to internally grooved aluminum tubing Coils have copper sweat refrigerant connections Molded polymer corrosion-resistant condensate drain pan is provided on all indoor coils Provisions for field electrical, connections available from either side or top of the air handler cabinet Blower housing with controls, motor and blower, slide out design for service and maintenance convenience Expansion valve on indoor coil provides for operation with air conditioning Indoor coil design provides low air side pressure drop, high performance and extremely compact size Supply duct flanges provided as standard on air handler cabinet
Rheem® Acclimate™ Series RH1Q4221STANJA Air Handler, 3.5 ton, 42000 Btu/hr Cooling, 42000 Btu/hr BTU, 800 to 1600 cfm
BrandRheem®
MFG #RH1Q4221STANJA
Keller #1072030
