NIBCO T-433-Y-1IN BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO T-433-Y-1IN BRZ CHECK VLV NOT FOR POTABLE USE

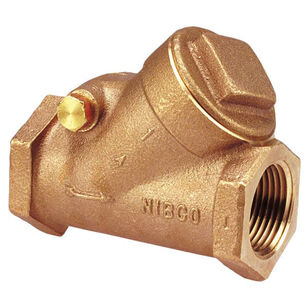

NIBCO® Horizontal Swing Check Valve, T-433-Y Series, 1 in Nominal, FPT Connection, 300 psi, Pressure Class: 150 lb, 366 deg F, Steam Media, 3.56 in Inlet to Outlet Length, 2.31 in Top to Inlet Center, 2-1/4 in Opening, Bronze Body, PTFE Seat, PTFE Disc, Bronze Trim, Bronze Softgoods, Contains Lead, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$527.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
ApplicationFor commercial and industrial applications
Body MaterialBronze
Connection TypeFPT
Disc MaterialPTFE
Domestic/ImportDomestic
Inlet to Outlet Length3.56
MediaSteam
Nominal Size1
Opening Size2-1/4
Pressure Class150
Pressure Rating300
Seat MaterialPTFE
SeriesT-433-Y Series
Softgoods MaterialBronze
Temperature Rating366
Top to Inlet Center2.31
Trim MaterialBronze
Warranty5 Year
Additional Information
MSS SP-80
Features & Benefits
- Y-pattern Renewable bronze disc Regrindable seat
Documents
Marketing Information
The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It features a screw-in bonnet for accessibility to repair or replace parts. The check valve is recommended for commercial and industrial steam, water, oil and gas services. The NIBCO® bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 Year 125% limited warranty.
NIBCO T-433-Y-1IN BRZ CHECK VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL7K00A
Keller #107235
