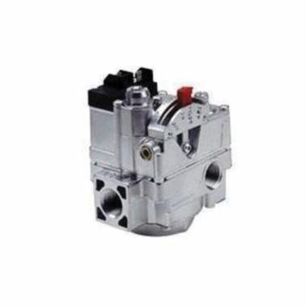

Robertshaw® 720 Series 720-402 Gas Valve, 1/2 x 3/4 x 1/2 in, FPT, 1/2 psi
Robertshaw® 720 Series 720-402 Gas Valve, 1/2 x 3/4 x 1/2 in, FPT, 1/2 psi
Robertshaw® Gas Valve, 720 Series, 1/2 x 3/4 x 1/2 in Nominal, Connection Type: FPT, 1/2 psi, Pilot Ignition, 0.5 A, 24 VAC, 50/60 Hz, 150000 Btu Nominal Capacity, Natural Gas Fuel, -40 to 175 deg F, 4.2 in L x 3 in W x 4.8 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$578.76 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandRobertshaw®
Amperage Rating0.5
Connection TypeFPT
Dimensions4.2 " L x 3 " W x 4.8 " H
Frequency Rating50/60
Fuel TypeNatural Gas
Ignition TypePilot
IndustryPlumbing
Nominal Capacity150000
Nominal Size1/2 x 3/4 x 1/2
Pressure Rating1/2
Series720 Series
Temperature Rating-40 to 175
Voltage Rating24
Shipping Dimensions (L x W x H)5.8" x 4.7" x 3.5"
Additional Information
CSA Certified|RoHS Compliant
Features & Benefits
- Gas cock dial marking Off - Pilot - On Pilot outlet 1/4 in tubing Ambient temperature of -40 deg F to 175 deg F Combination screw/spade terminal type Maximum inlet pressure 14 in WC (0.5 PSI) Standard NEMA terminals Inlet filtered screen Various gas types: natural, manufactured, mixed, LP, and LP/air mixtures Multiple actuators available RoHS compliant 1/2 in FPT side outlets with plugs
Marketing Information
The Robertshaw® 720 Series 24 Volt Dual Gas Valve is a six-function gas valve incorporating a manual valve, safety shut-off magnet, dual automatic valves, main gas regulator, and pilot adjustment. Models are available with and without a pressure regulator. Uni-Kit® models are factory set at 3.5 in WC for natural gas, but can be converted to LP by installing the regulator conversion kit included. The wiring connections, manual selector and adjustments are easily accessible on top of the valve. With a 3-9/16 in swing radius, the 720 Series lends itself well to replacing many OEM valves. Valve can be mounted in any position except upside down.
Robertshaw® 720 Series 720-402 Gas Valve, 1/2 x 3/4 x 1/2 in, FPT, 1/2 psi
BrandRobertshaw®
MFG #720-402
Keller #1073487
