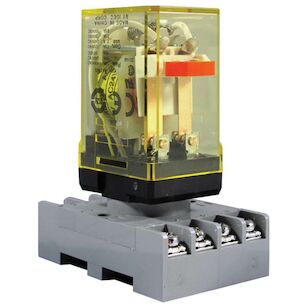

Tekmar® 004 Relay, 120 V Coil, 10 A, DPDT
Tekmar® 004 Relay, 120 V Coil, 10 A, DPDT
Tekmar® Relay, 250 VAC, 10 A, 120 V Coil, DPDT Contact Form, DIN Rail Mounting, 1-9/16 in Overall Width, 2-3/8 in Overall Depth, 3 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$137.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTekmar®
Amperage Rating10
Coil Voltage120
Contact FormDPDT
Mounting TypeDIN Rail
Overall Depth2-3/8
Overall Height3
Overall Width1-9/16
Voltage Rating250
Additional Information
ASSE Certified|CSA Certified|FM Approved|NSF Standard|UL Listed|ULC Listed|USC Listed|WQA Certified
Features & Benefits
- Isolate electrical loads Easy-to-replace (ice cube style - no need to remove wiring) LED to indicate when energized
Documents
Marketing Information
The Relay 004 is a 120 VAC coil DPDT (double pole double throw) relay that is used to isolate electrical loads and allow higher current ratings than the on board relays found on tekmar controls. It can be used in applications ranging from doubling the capability of a single output (e.g. energize a pump as well as provide a boiler demand from one output) to allowing a pump to be used that draws more than the control specified relay rating. The 004 relay uses a 120 VAC coil that once energized, closes 2 normally open contacts and opens 2 normally closed contacts.
Tekmar® 004 Relay, 120 V Coil, 10 A, DPDT
BrandTekmar®
MFG #004
Keller #107354
