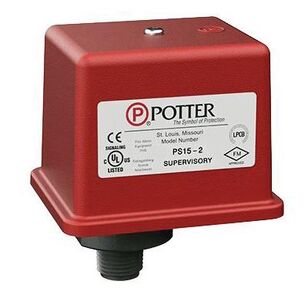

POTTER® PS15 1340415 Low/High Supervisory Pressure Switch With Two Sets SPDT Contacts, -40 to 140 deg F, Composite
POTTER® PS15 1340415 Low/High Supervisory Pressure Switch With Two Sets SPDT Contacts, -40 to 140 deg F, Composite
POTTER® Low/High Supervisory Pressure Switch With Two Sets SPDT Contacts, Series: PS15, -40 to 140 deg F, 1/2 in Fitting Connection, Composite, Specifications: 125/250 VAC, 30 VDC, 2/10.1 A, 5 to 30 psi, SPDT Switch, NEMA 4, IP66, For Use With: Automatic Fire Sprinkler System, Low Differential Dry and Preaction Valve
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$304.57 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandPOTTER®
Fitting Connection1/2
MaterialComposite
SeriesPS15
Specifications125/250 VAC, 30 VDC, 2/10.1 A, 5 to 30 psi, SPDT Switch, NEMA 4, IP66
Suitable For Use WithAutomatic Fire Sprinkler System, Low Differential Dry and Preaction Valve
Temperature Rating-40 to 140
Additional Information
UL Listed|cUL Listed|cULus Listed|FM Approved|CE Certified|MEA Approved|LPCB Approved|NFPA 13/13D/13R/72|CSFM Certified
Features & Benefits
- Independent switch adjustment, no tools needed Two 1/2 in conduit/cable entrances Separate isolated wiring chambers Non-corrosive pressure connection Non-conductive enclosure
Marketing Information
The POTTER® PS15 Series supervisory pressure actuated switches are designed primarily to detect an increase and/or decrease from normal system pressure in automatic fire sprinkler systems. Typical applications are - air/nitrogen supervision in dry pipe and pre-action systems, pressure tanks, air supplies and water supplies. The PS15 has two switches. The low switch is factory set to activate at approximately 10 psi (0.35 bar) on a decrease in pressure. The high switch is factory set to activate at approximately 20 psi (1.4 bar) on an increase in pressure. See section heading Adjustments and Testing if other than factory set point is required.
POTTER® PS15 1340415 Low/High Supervisory Pressure Switch With Two Sets SPDT Contacts, -40 to 140 deg F, Composite
BrandPOTTER®
MFG #1340415
Keller #1074049
My Part ##
Last Ordered#
$304.57 / ea
