ANSI/ASME B1.20.1|ASSE 1015|AWWA C510, C606-11|CSA B64.5|cUPC Certified|NFPA 13, 14, 15, 16, 20, 22, 24|IAPMO Approved|UL Listed

• Bronze body with gear operated slow close isolation valves One top entry access cover for easy maintenance Top mounted ball valve type test cocks No special tools are required Compact design Low pressure drop Modular construction The maximum working pressure is 175 PSI (12.06 BAR) Temperature range is 33 to 140 degrees F (0.5 to 60 degrees C)

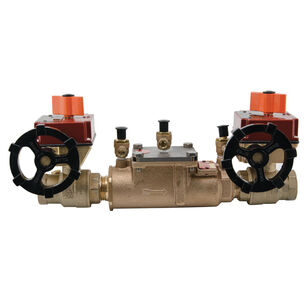

This 2 inch double check valve assembly backflow preventer is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazard applications and from other contaminants found at the service line entrance. This compact modular design with a single access cover for easy maintenance is approved for horizontal and vertical installations. This assembly consists of a bronze body, gear operated slow close isolation valves, two pre-wired tamper switches, grooved inlet/outlet, two positive seating check modules, and top mounted test cocks.
