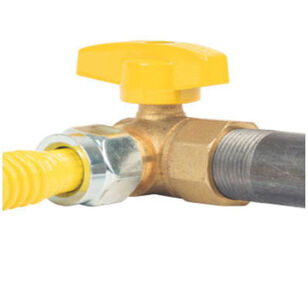

BrassCraft® TBVA Series TBVA10-12 Ball Valve, 5/8 x 3/4 in, Flared x FIP, Brass, 5 psi
BrassCraft® TBVA Series TBVA10-12 Ball Valve, 5/8 x 3/4 in, Flared x FIP, Brass, 5 psi
BrassCraft® Ball Valve, TBVA Series, 5/8 x 3/4 in Nominal, Flared x FIP Connection, 5 psi, Gas Media, 2 in Inlet to Outlet Length, 1.7 in Top to Inlet Center, Handle Operator, Brass Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, Aluminum Handle, Brass Ball, PTFE/Rubber Softgoods, -40 to 150 deg F, 2 in L, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$64.52 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
ApplicationFor indoor and outdoor applications
Ball MaterialBrass
Body MaterialBrass
Connection TypeFlared x FIP
Dimensions2 " L
Domestic/ImportDomestic
Handle MaterialAluminum
IndustryPlumbing
Inlet to Outlet Length2
MediaGas
Nominal Size5/8 x 3/4
Operator TypeHandle
Pressure Rating5
Seat MaterialPTFE
SeriesTBVA Series
Softgoods MaterialPTFE/Rubber
Stem MaterialBrass
Temperature Rating-40 to 150
Top to Inlet Center1.7
Trim MaterialBrass/PTFE
Additional Information
ANSI Z21.15|ANSI/ASME B16.44|CGA CR91-002|CSA 9.1
Features & Benefits
- Forged brass body eliminates pin hole leaks commonly associated with cast products Connects to a 5/8 in OD gas connector and a 3/4 in MIP gas supply pipe For use in gas appliance installations Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures PTFE seats assure a tight seal and easy-on and off operation even after long periods of inactivity
Marketing Information
BrassCraft® exclusive line of Italian made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. Angle valves are ideal for installations in tight spaces. This gas ball valve installs directly to the gas pipe stub out at the appliance to regulate gas flow.
BrassCraft® TBVA Series TBVA10-12 Ball Valve, 5/8 x 3/4 in, Flared x FIP, Brass, 5 psi
BrandBrassCraft®
MFG #TBVA10-12
Keller #107643
