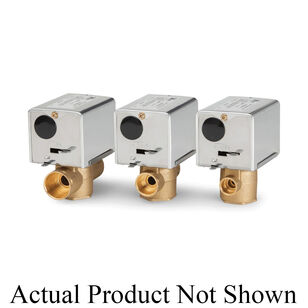

Taco Comfort Solutions® QuickTop® QT100C2 QT100C2-1 Zone Valve, 1 in, Sweat, 5 Cv, Brass
Taco Comfort Solutions® QuickTop® QT100C2 QT100C2-1 Zone Valve, 1 in, Sweat, 5 Cv, Brass
Taco Comfort Solutions® QuickTop® Zone Valve, Model: QT100C2, 1 in Nominal, Sweat Connection, Number of Ways/Position: 2-Ways, 300 psi, 5 Cv Flow Coefficient (Cv), Lever Handle Operator, Brass Stem, Brass Trim, NBR Seal, Brass, 5 W Power Consumption, Water or Water/Glycol, Up to 50% Glycol, Closed Systems Service, 10 to 20 s Timing, Normally Closed, SPST, 24 V, VA Rating: 7.2 VA, 32 to 200 deg F, 4-3/16 in H x 3-3/8 in W x 2-11/16 in D, Additional Information: 60 Hz Frequency Rating, 5 to 95% Non-Condensing Humidity
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$182.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTaco Comfort Solutions®
Additional Information60 Hz Frequency Rating, 5 to 95% Non-Condensing Humidity
ConfigurationNormally Closed, SPST
Connection TypeSweat
Dimensions4-3/16 " H x 3-3/8 " W x 2-11/16 " D
Flow Coefficient (Cv)5
IndustryHydronics
MaterialBrass
ModelQT100C2
Nominal Size1
Number of Ways/Position2-Ways
Operator TypeLever Handle
Power Consumption5
Pressure Rating300
Seal MaterialNBR
Service TypeWater or Water/Glycol, Up to 50% Glycol, Closed Systems
Stem MaterialBrass
Temperature Rating32 to 200
Timing Range10 to 20
Trim MaterialBrass
VA Rating7.2
Voltage Rating24
Additional Information
60 Hz Frequency Rating, 5 to 95% Non-Condensing Humidity
Features & Benefits
- Quick release actuator lever Manual override Can be wired from either end of the actuator Isolated end switch
Marketing Information
The QuickTop® zone valves provide On/Off, normally closed control in closed hydronic systems. The valves can be used in a wide variety of heating and cooling applications. Use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications. Taco QuickTop® zone valves provide a convenient way to create individual zones or equipment isolation in closed loop hydronic systems. Utilizing one pump with multiple zone valves, flow can be started or stopped through the system providing individual room or area comfort, control and energy savings. QuickTop® zone valves are offered with 1/2 in, 3/4 in or 1 in sweat connections and comes with Taco trusted quality and reliability. An affordable replacement for normally-closed, synchronous motor zone valves.
