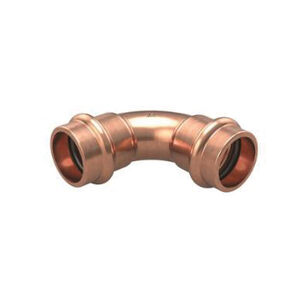

Conex Banninger MaxiPro MPA5002 0070001 90 deg Bend, 7/8 in Press, Copper
Conex Banninger MaxiPro MPA5002 0070001 90 deg Bend, 7/8 in Press, Copper
Conex Banninger MaxiPro 90 deg Bend, Series: MPA5002 Series, 90 deg Bend Fitting, 7/8 in Connection Size 1, Press Connection Type 1, Press Connection, Copper, Copper Material Construction, For Use With: R-1234YF, R-1234ZE, R-125, R-134A, R-290, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A and R-444 Refrigerants, 700 psig, -40 to 284 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$49.17Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandConex Banninger
ApplicationRefrigeration, Air Conditioning and Heat Pump Applications
Connection Size 17/8
Connection TypePress
Connection Type 1Press
Fitting Type90 deg Bend
For use with:R-1234YF, R-1234ZE, R-125, R-134A, R-290, R-32, R-404A, R-407A, R-407C, R-407F, R-407H, R-410A, R-417A, R-421A, R-422B, R-422D, R-424A, R-427A, R-434A, R-437A, R-438A and R-444 Refrigerants
IndustryHVAC
MaterialCopper
Material ConstructionCopper
Pressure Rating700
SeriesMPA5002 Series
Temperature Rating-40 to 284
Warranty10 Year
Additional Information
ASTM B280/G85|EN 14276-2/378-2/12735-1/12735-2|SA 44668|UL 109/1963
Features & Benefits
- Flame-free installation avoids the need for a hot work permit and the risk of fire on site No nitrogen purge - MaxiPro is a mechanical joint, thus eliminating the need for nitrogen purge during the jointing process Lower installed cost - a professional fitting which is quick and simple to install, saving time and money Higher productivity, improved flexibility - work may be completed during working hours/public access, by a single employee Easy access to work sites, no gas bottles required Quality designed in - reliable, repeatable, permanent, tamper-proof connections every time Three-press points, one each side of the bead and one press compressing the O-ring This provides a permanent and secure joint A high quality HNBR O-ring forms a secure leak-free joint when pressed Protected O-ring - lead-in edge design aids tube insertion and helps protect the O-ring from damage or displacement Fittings are marked MaxiPro and identified with a pink mark indicating their suitability for high pressure air conditioning and refrigeration applications Electrical continuity - maintains earth continuity without the need for additional earth continuity straps Field proven - press-fit technology, field proven over 20 years and millions of installed fittings worldwide Compact tooling - light compact tooling provides easy access to tightly spaced tube runs
Conex Banninger MaxiPro MPA5002 0070001 90 deg Bend, 7/8 in Press, Copper
BrandConex Banninger
MFG #MPA5002 0070001
Keller #1076757
My Part ##
Last Ordered#
$49.17Â /Â ea
