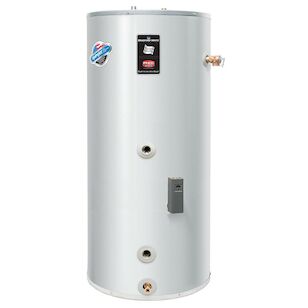

Bradford White® PowerStor Series® SS-75 SS-75-L Single-Wall Indirect Water Heater, 73 gal, 193000 Btu/hr
Bradford White® PowerStor Series® SS-75 SS-75-L Single-Wall Indirect Water Heater, 73 gal, 193000 Btu/hr
Bradford White® Single-Wall Indirect Water Heater, Series: PowerStor Series®, Model: SS-75, 73 gal Capacity, 193000 Btu/hr, 14 gpm Flow Rate, 367 gph First Hour Delivery, 0.4 deg F/hr Standby Loss, NPT Connection, 150 psi, 0.1 ft Coil Head Loss, 307 gph Continuous Draw, Automatic Control, Floor Mounting, Stainless Steel, Lead-Free, 240 deg F, 24 in Dia x 66-1/4 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBradford White®
BTU Rating193000
Capacity73
Coil Head Loss0.1
Connection TypeNPT
Continuous Draw307
Control TypeAutomatic
Dimensions24 " Dia x 66-1/4 " H
First Hour Delivery367
Flow Rate14
MaterialStainless Steel
ModelSS-75
Mounting TypeFloor
Pressure Rating150
SeriesPowerStor Series
Standby Loss0.4
Temperature Rating240
Shipping Dimensions (L x W x H)24.75" x 24.75" x 74"
Additional Information
AHRI Certified|ANSI Z21.22|CAN 1-4.4|CSA Certified|cULus Listed|UL Listed
Features & Benefits
- Stainless steel heat exchanger - single-wall 1 in OD stainless steel coil Stainless steel tank and heat exchanger - made from chromium molybdenum - titanium ferritic 444 stainless steel alloy Temperature and pressure relief valve 2 in non-CFC foam insulation 3/4 in NPT dielectric fittings extend water heater life and eases installation Low restrictive brass drain valve
Documents
Marketing Information
All units are certified at 300 psi test pressure and 150 psi working pressure. All potable water connections are 3/4 in NPT (1 in NPT on SS-120). Toxic chemicals, such as those used for boiler treatment, shall never be introduced into the potable water side. The potable side of this unit may never be connected to any existing heating system or components previously used with a non-potable water heating appliance. The heat exchanger side of the unit may be used in space heating applications.
