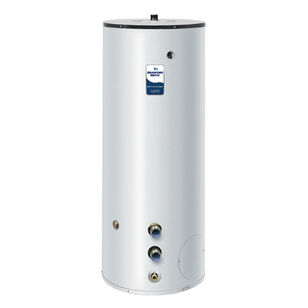

Bradford White® M-3 Series M-3-ST120R5-869 Jacketed Storage Tank, 119 gal Capacity, 28 in Dia, Steel
Bradford White® M-3 Series M-3-ST120R5-869 Jacketed Storage Tank, 119 gal Capacity, 28 in Dia, Steel
Bradford White® Jacketed Storage Tank, M-3 Series, 119 gal Capacity, 28 in Dia, 2 in Connection, NPT Connection, Steel, 150 psi Pressure, 180 deg F, 63-1/2 in H, 300 psi Test Pressure
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,466.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandBradford White®
Additional Information300 psi Test Pressure
Capacity119
Connection Size2
Connection TypeNPT
Diameter28
Dimensions63-1/2 " H
MaterialSteel
Pressure Rating150
SeriesM-3 Series
Temperature Rating180
Additional Information
ASHRAE 90.1|ASME Specified|CSA Certified|cULus Listed|UL Listed
Features & Benefits
- Vitraglas® Lining with Microban® - an exclusively engineered enamel formula that provides superior tank protection from the corrosive effects of water and with Microban® anti-microbial product protection to help prevent the growth of bacteria, mold and mildew on the surface of the tank lining Insulation system 2 in non-CFC foam covers the sides and top of the tank, reducing heat loss this results in less energy consumption, improved efficiencies and jacket rigidity Water connections - 2 in NPT factory installed true dielectric fittings extend water heater life and simplify water line connections Rear connection - 2 in NPT spud allows for a rear water connection Hand hole cleanout for removal of accumulated lime and sediment Two protective anode rods - provide added protection against corrosion for long-term, trouble-free service Steel tank - heavy gauge steel automatically formed, rolled and welded T&P relief valve opening - all models have special tapping on side of tank 3/4 in NPT aquastat fitting Designed for storage of potable water up to 180 deg F (82 deg C) Low restrictive brass drain valve - durable tamper-proof design
Bradford White® M-3 Series M-3-ST120R5-869 Jacketed Storage Tank, 119 gal Capacity, 28 in Dia, Steel
BrandBradford White®
MFG #M-3-ST-120R5-869
Keller #1079327
My Part ##
Last Ordered#
$2,466.00 / ea
