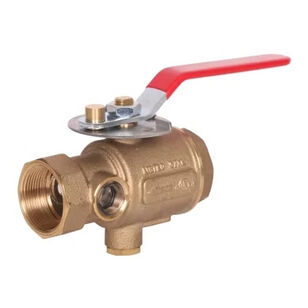

FPPI® TrimFit® 06-850 Series 4324000510 Test and Drain Valve, 1-1/2 in Nominal, FNPT, 175 psi, Bronze Body
FPPI® TrimFit® 06-850 Series 4324000510 Test and Drain Valve, 1-1/2 in Nominal, FNPT, 175 psi, Bronze Body
FPPI® TrimFit® Test and Drain Valve, 06-850 Series, 1-1/2 in Nominal, FNPT Connection, Full Port, 175 psi, Handle Actuator, 1/2 in Orifice, 2.933 in Top to Inlet Center, Material Standard: ASTM B584, Bronze Body, RTRFE Seat, PTFE Stem, Contains Lead, 9.723 in L x 4.902 in H, Domestic/Import: Domestic, Additional Information: 4.012 in Take-Out Size
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$890.37 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFPPI®
Actuator TypeHandle
Additional Information4.012 " Take-Out Size
ApplicationFor fire sprinkler industry
Body MaterialBronze
Connection TypeFNPT
Dimensions9.723 " L x 4.902 " H
Domestic/ImportDomestic
IndustryFire Protection
Material StandardASTM B584
Nominal Size1-1/2
Orifice Size1/2
Packing MaterialMPRTFE
Port TypeFull
Pressure Rating175
Seat MaterialRTRFE
Series06-850 Series
Stem MaterialPTFE
Top to Inlet Center2.933
Additional Information
FM Approved|NYC Board of S&A Cal. No. 433-88-SM|UL/ULC EX4074
Features & Benefits
- Positive positioning of handle for OFF, TEST or DRAIN Only 2 threaded connections Large, integral sight glass on both sides
Documents
Marketing Information
FPPI® TrimFit® TD test and drain valves feature heavy-duty brass construction for extended service life. TrimFit® TD features three positions: closed, test and drain (open). Two large and integral sight glasses allow for maximum visibility when operated. Due to the compact and integrated form, TrimFit® TD valves can be installed in both horizontal and vertical orientations in a small amount of space.
FPPI® TrimFit® 06-850 Series 4324000510 Test and Drain Valve, 1-1/2 in Nominal, FNPT, 175 psi, Bronze Body
BrandFPPI®
MFG #4324000510
Keller #1079859
