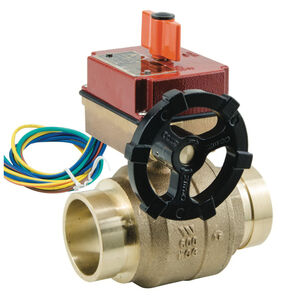

AMES® FIRE & WATERWORKS LFAFBV-FP Series 88005714 Slow Close Ball Valve With Grooved Ends and Supervisory Switches
AMES® FIRE & WATERWORKS LFAFBV-FP Series 88005714 Slow Close Ball Valve With Grooved Ends and Supervisory Switches
AMES® FIRE & WATERWORKS Slow Close Ball Valve With Grooved Ends and Supervisory Switches, LFAFBV-FP Series, 1-1/4 in Nominal, Grooved Connection, Full Port, 400 psi, 600 WOG, Gas, Oil, Water Media, 4-1/16 in Inlet to Outlet Length, 5-1/8 in Top to Inlet Center, Gear Operator, Material Standard: ANSI/ASME B1.20.1, ASTM B584, Copper Silicone Alloy Body, PTFE Seat, Brass Stem, Brass/PTFE Trim, PTFE Packing, EPDM/PTFE Softgoods, Lead-Free, 33 to 180 deg F, 6-5/16 in H x 5-3/16 in W x 4-5/16 in D, Domestic/Import: Domestic, Additional Information: Brass Ball
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$920.50 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandAMES® FIRE & WATERWORKS
Additional InformationBrass Ball
ApplicationFor indoor and outdoor applications
Body MaterialCopper Silicone Alloy
Configuration2-Piece
Connection TypeGrooved
Dimensions6-5/16 " H x 5-3/16 " W x 4-5/16 " D
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length4-1/16
Lead-FreeYes
Material StandardANSI/ASME B1.20.1, ASTM B584
MediaGas, Oil, Water
Nominal Size1-1/4
Operator TypeGear
Packing MaterialPTFE
Port TypeFull
Pressure Rating400 psi, 600 WOG
Seat MaterialPTFE
SeriesLFAFBV-FP Series
Softgoods MaterialEPDM/PTFE
Stem MaterialBrass
Temperature Rating33 to 180
Top to Inlet Center5-1/8
Trim MaterialBrass/PTFE
Additional Information
AWWA C606|FM Approved|NSF/ANSI 372|NEPA Approved|UL Listed
Features & Benefits
- Lead free cast copper silicon alloy Machined chrome plated lead free brass ball Slow-close gear operation Integrated supervisory switches with reversible switch box for simplified electrical wiring access Can be wired normally open or normally closed Reversible supervisory switch box simplifies electrical wiring access
Marketing Information
This 1 1/4 inch full port gear operated ball valve is UL/FM rated for use in fire suppression systems. This valve features 2-piece lead free construction, integrated supervisory switches, a mechanical indicator flag and grooved ends. The valve is rated 400 psi WOG for indoor and outdoor applications.
