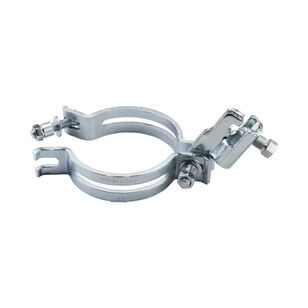

nVent CADDY CSB01000 Sway Brace, 10 in Pipe, 2800 lb Load, Steel, Electro-Galvanized
nVent CADDY CSB01000 Sway Brace, 10 in Pipe, 2800 lb Load, Steel, Electro-Galvanized
nVent CADDY Sway Brace, 10 in Pipe, 2800 lb Load Capacity, Steel, Electro-Galvanized, 1-1/2 in Overall Width, 15-3/16 in Overall Height, Additional Information: 1 to 2 in Brace Size, Load Rating: 1909 lb UL Lateral, 1909 lb UL Longitudinal, 2800 lb FM Perpendicular to Structure/Lateral, 2800 lb FM Parallel to Structure/Longitudinal
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$162.57Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandnVent ERICO
Additional Information1 to 2 " Brace Size, Load Rating: 1909 lb UL Lateral, 1909 lb UL Longitudinal, 2800 lb FM Perpendicular to Structure/Lateral, 2800 lb FM Parallel to Structure/Longitudinal
FinishElectro-Galvanized
Load Capacity2800
MaterialSteel
Overall Height15-3/16
Overall Width1-1/2
Pipe Size10
Additional Information
Buy American Act Compliant|cULus Listed|CEN/TS 17551:2021|FM Approved|NFPA 13|OSHPD/HCAI Certified|UL Listed
Features & Benefits
- Use for both lateral and longitudinal sway brace applications Unique slotted holes provide for easy slip-on installation eliminating loose hardware Snap-off bolt head helps enable easy installation and inspection of seismic sway braces Works with 1 in through 2 in brace pipes to reduce inventory FM approved with 12 ga or thicker Type A solid strut as brace member
