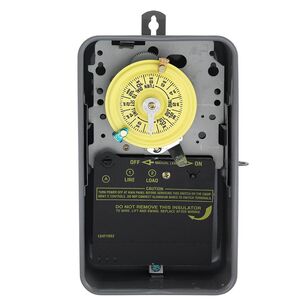

Intermatic® T100 Series A3000767 Time Switch, 120 V, 40 A, 60 Hz, SPST
Intermatic® T100 Series A3000767 Time Switch, 120 V, 40 A, 60 Hz, SPST
Intermatic® Time Switch, Series: T100 Series, 120 V, 40 A, 60 Hz, 3 W, SPST, 24 hr Time Settings, Switch Rating: 2 hp (24 FLA) at 120 VAC, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten, 5 hp (28 FLA) at 240 VAC 1-Phase (Per Pole), Inductive or 1000 VA Pilot-Duty at 120 to 277 VAC, Pilot Duty: 1000 VA, 14 to 8 AWG Wire, Teeter Terminal, NEMA 3R, Steel Enclosure Type Material, Gray, -40 to 130 deg F, 10-1/8 in H x 6-1/2 in W x 3-5/8 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Amperage Rating40
ColorGray
Contact ConfigurationSPST
Dimensions10-1/8 " H x 6-1/2 " W x 3-5/8 " D
Enclosure TypeNEMA 3R
Enclosure Type MaterialSteel
Frequency Rating60
IndustryLeisure
Pilot Duty Rating1000
Power Rating3
SeriesT100 Series
Switch Rating2 hp (24 FLA) at 120 VAC, 40 A Resistive at 120 to 480 VAC, 40 A Tungsten, 5 hp (28 FLA) at 240 VAC 1-Phase (Per Pole), Inductive or 1000 VA Pilot-Duty at 120 to 277 VAC
Temperature Rating-40 to 130
Terminal TypeTeeter
Time Settings24
Voltage Rating120
Wire Size14 to 8
Shipping Dimensions (L x W x H)6.5" x 4" x 10"
Additional Information
CSA Certified|NEMA 3R Steel Compliant|UL Listed
Features & Benefits
- Direct 24 hr control of most loads Up to 12 on/off operations each day with minimum on/off times of 1 hr Manual override One on and one off tripper included
Documents
Marketing Information
The T100 Series mechanical time switch has proven it can stand the test of time. These dependable time switches can handle electrical loads up to 40 A per pole and allow for up to 12 on/off operations per day. A manual override switch provides added convenience.
Intermatic® T100 Series A3000767 Time Switch, 120 V, 40 A, 60 Hz, SPST
BrandIntermatic®
MFG #T101R
Keller #1082508
