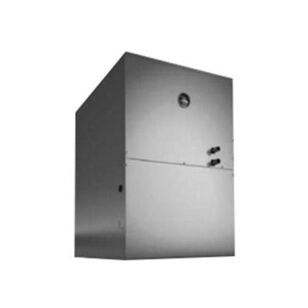

Rheem® Ovation Series RWMV06A3617NAA Air Handler, Up to 3 ton, 60000 Btu/hr BTU, 500 to 1200 cfm, 115 VAC, 9.625 A
Rheem® Ovation Series RWMV06A3617NAA Air Handler, Up to 3 ton, 60000 Btu/hr BTU, 500 to 1200 cfm, 115 VAC, 9.625 A
Rheem® Air Handler, RWMV Series, Up to 3 ton Nominal Capacity, 60000 Btu/hr BTU Rating, 115 VAC Voltage Rating, 9.625 A Amperage Rating, 17.6 kW Wattage, 1/2 hp Rating, 60 Hz Frequency Rating, 1 ph Phase, 500 to 1200 cfm Rating, Connection Type: 3/4 in Water Inlet and Outlet, 20 A Fuse Rating, Steel, Galvanized/Pre-Painted, 160 deg F Temperature Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$6,642.10 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating9.625
BTU Rating60000
CFM Rating500 to 1200
Connection Type3/4 " Water Inlet and Outlet
FinishGalvanized/Pre-Painted
Frequency Rating60
Fuse Rating20
HP Rating1/2
IndustryHVAC
MaterialSteel
Nominal CapacityUp to 3
Phase1
SeriesRWMV
Temperature Rating160
Voltage Rating115
Wattage17.6
Additional Information
AHRI Certified, ISO 9001:2008, C/US UL Listed
Features & Benefits
- Low profile 34 in design is lighter and easier to handle and leaves room for optional accessories Left or right side electric connections Integrated control board features diagnostics, manages all operational functions An insulated blower compartment makes it one of the quietest hydronic air handlers on the market today Pre-paint galvanized steel cabinet, designed for added strength and stability Molded permanent filters Transformer and control fuse protection Solid bottom is standard Stainless steel water pump Field convertible for vertical downflow, horizontal left hand or right hand air supply Energy efficient ECM motor which slowly ramps up speed for quiet and finely tuned operation to maintain constant CFM Factory installed indoor coil Pump control knob allows adjustment of the differential between the inlet water temperature and outlet air temperature 1st design major Series 1st design minor Series 10 x 8 in blower EcoTech (ECM) blower motor, wet rotor pump type Copper studs water connection type 3/4 in Dia inlet water and out water connection 125 lb/sq-in pump maximum working pressure
Documents
Rheem® Ovation Series RWMV06A3617NAA Air Handler, Up to 3 ton, 60000 Btu/hr BTU, 500 to 1200 cfm, 115 VAC, 9.625 A
BrandRheem®
MFG #RWMV06A3617NAA
Keller #1083775
My Part ##
Last Ordered#
$6,642.10 / ea
