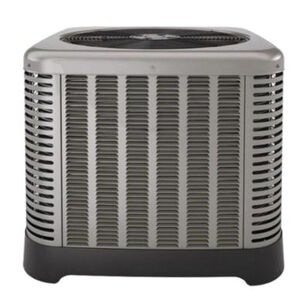

Rheem® WH Series RA1424BJ1NA Air Conditioner Condensing Unit, 2 ton, 23200 Btu/hr Cooling, 208/230 V, 24000 Btu/hr
Rheem® WH Series RA1424BJ1NA Air Conditioner Condensing Unit, 2 ton, 23200 Btu/hr Cooling, 208/230 V, 24000 Btu/hr
Rheem® Air Conditioner Condensing Unit, RA14 Series, 2 ton Nominal Capacity, 23200 Btu/hr Cooling Capacity, 24000 Btu/hr BTU Rating, 208/230 V Voltage Rating, 15 A Amperage Rating, 6.8 kW Wattage, 1/8 hp Rating, 1121 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 2295 cfm Rating, 11.5 EER Rating, 14 SEER Rating, 1 Number of Stages, R-410A Refrigerant Type, 3/8 in Liquid Line Size, 3/4 in Suction Line Size, 75 dBA Sound Level, Direct Drive Type, 25 A Fuse Rating, 11.1 sq-ft Face Area, PSC Compressor Motor Type, 22 FPI Fins per Inch, 55 to 125 deg F Temperature Rating, Powder-Coated, Gray, 29-3/4 in L x 29-3/4 in W x 25 in H Dimensions, Non-Communicating Control, 1st Design Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$3,695.86 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandRheem®
Additional InformationNon-Communicating Control, 1st Design
Amperage Rating15
BTU Rating24000
CFM Rating2295
ColorGray
Compressor TypeScroll
Cooling Capacity23200
Dimensions29-3/4 " L x 29-3/4 " W x 25 " H
Drive TypeDirect
EER Rating11.5
Face Area11.1
FinishPowder-Coated
Fins per Inch22
Frequency Rating60
Fuse Rating25
HP Rating1/8
Liquid Line Size3/8
Motor TypePSC Compressor
Nominal Capacity2
Number of Stages1
Phase1
Refrigerant TypeR-410A
Rotational Speed1121
SEER Rating14
SeriesRA14 Series
Sound Level75
Suction Line Size3/4
Temperature Rating55 to 125
Voltage Rating208/230
Warranty10 Year Parts
Wattage6.8
Shipping Dimensions (L x W x H)32.38" x 32.38" x 26.75"
Additional Information
AHRI Certified|cULus Listed|Energy Star Certified
Features & Benefits
- New composite base pan - dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Coat paint system - for a long-lasting professional finish Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics - increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice - optimizes airflow and reduces unit sound Rust-resistant screws confirmed through 1500 hr salt spray testing PlusOne® expanded valve space - 3 to 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne® triple service access 15 in W, industry leading corner service access makes repairs easier and faster The two fastener removable corner allows optimal access to internal unit components Individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two fastener opening provides access to the high and low pressure External gauge port access allows easy connection of low loss gauge ports Single-row condenser coil - makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners and fastener-free base - allow for faster access to internal components and hassle-free panel removal Service trays hold fasteners or caps during service calls QR code provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
Marketing Information
The Rheem® Classic® Series Air Conditioners were developed using our 360 deg +1 design philosophy, which means every detail of the product is meticulously evaluated from every angle. We consider the work that goes into installing and servicing our products, as well as how we can deliver the very best homeowner experience. And then we take it a step further. That’s 360 deg +1. And that's why you can count on your Rheem® Air Conditioning unit to bring you and your family years of comfort.
