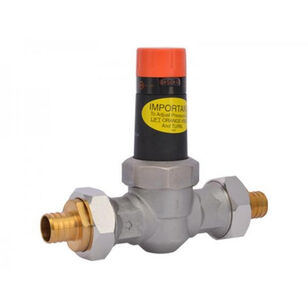

CashAcme™ EB25 Series 23140-0045 Single Cartridge Pressure Regulating Valve, 1 in Nominal, Union PEX x Union PEX
CashAcme™ EB25 Series 23140-0045 Single Cartridge Pressure Regulating Valve, 1 in Nominal, Union PEX x Union PEX
CashAcme™ Single Cartridge Pressure Regulating Valve, EB25 Series, 1 in Nominal, Union PEX x Union PEX Connection, 300 psi, Water Media, 7-7/16 in Inlet to Outlet Length, 4-11/32 in Top to Inlet Center, Brass Body, Polysulfone Seat, EPDM Disc, Nylon/Steel Trim, EPDM Packing, EPDM Softgoods, 33 to 180 deg F, 2-9/32 in W, Additional Information: 45 psi Factory Setting Pressure Rating
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$353.85 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSharkBite™
Additional Information45 psi Factory Setting Pressure Rating
ApplicationFor residential and commercial applications
Body MaterialBrass
Connection TypeUnion PEX x Union PEX
Dimensions2-9/32 " W
Disc MaterialEPDM
Inlet to Outlet Length7-7/16
MediaWater
Nominal Size1
Packing MaterialEPDM
Pressure Rating300
Seat MaterialPolysulfone
SeriesEB25 Series
Softgoods MaterialEPDM
Temperature Rating33 to 180
Top to Inlet Center4-11/32
Trim MaterialNylon/Steel
WarrantyLimited
Shipping Dimensions (L x W x H)5" x 6.25" x 5"
Additional Information
ASSE 1003|CSA B356|CSA Certified|IAPMO Listed|NSF/ANSI 61, 372
Features & Benefits
- Rock-steady outflow even with extreme variations in supply pressure Single cartridge design that has fewer parts for increased reliability Easily adjustable cartridge that can be serviced without removing the valve body Innovative "micro-fingers" that dissipate noise as water flows across the seat, eliminating water whistle or harmonic hum associated with most water pressure regulating valves The adjustable water pressure regulator comes factory set at 45 psi but can be manually set to between 20 and 90 psi
Marketing Information
The EB25 adjustable water pressure regulator provides state-of-the-art water control to residential and commercial applications. The simple numerical indicator allows the desired pressure to be set with precision, even before the water pressure regulator valve is installed, making adjustments easy and simple.
CashAcme™ EB25 Series 23140-0045 Single Cartridge Pressure Regulating Valve, 1 in Nominal, Union PEX x Union PEX
BrandSharkBite™
MFG #23140-0045
Keller #1084259
