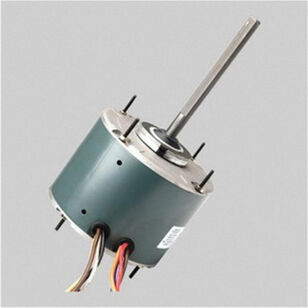

DiversiTech® Wagner® WG840203 Condenser Fan Motor, 1/6 hp, 208-230 V, 60 Hz, 48 Frame, 825 rpm Speed
DiversiTech® Wagner® WG840203 Condenser Fan Motor, 1/6 hp, 208-230 V, 60 Hz, 48 Frame, 825 rpm Speed
DiversiTech® Condenser Fan Motor, 1/6 hp, 208-230 V, 1 A, 60 Hz, 825 rpm, 1 Speed, Totally Enclosed Enclosure, 48 Frame, 1/2 x 5 in Shaft, Ball Bearing, Belly Band Mounting, 140 deg F, Class B Insulation Class, Additional Information: 1.3 A Full Load Current, Ducted, 5-5/8 in Dia Dimensions, 5 F/370 V Capacitor, PSC Motor
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$280.52 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Marketing Information
Attributes
BrandDiversiTech®
Additional Information1.3 A Full Load Current, Ducted, 5-5/8 " Dia Dimensions, 5 F/370 V Capacitor, PSC Motor
Amperage Rating1
Bearing TypeBall
Enclosure TypeTotally Enclosed
Frame48
Frequency Rating60
HP Rating1/6
IndustryHVAC
Insulation ClassClass B
Mounting TypeBelly Band
Number of Speeds1
Shaft Size1/2 x 5
Speed Rating825
Temperature Rating140
Voltage Rating208-230
Shipping Dimensions (L x W x H)12.8" x 6.69" x 7.09"
Additional Information
1.3 A Full Load Current, Ducted, 5-5/8 in Dia Dimensions, 5 F/370 V Capacitor, PSC Motor
Features & Benefits
- Motors feature reversing plugs, extended thru bolts, 36 in leads and low power consumption Ball bearing design allows for greater heat endurance, improved performance, increased reliability and enhanced motor life Extended-mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently Run capacitor connections are insulated for increased safety and flag disconnects are provided Detailed and large wiring diagrams are on the motor and the motor carton and also in the installation and safety instruction sheet
Marketing Information
This Wagner® WG840203 condenser fan motor, single speed 1/6 hp, 825/1 rpm, 1.0 FLA, 208-230 V, 60C condenser fan motor is electrically reversible and features automatic overload protection in a standard 48 frame motor size. It has 36 in leads and operates on 60 Hz frequency with low power consumption.
DiversiTech® Wagner® WG840203 Condenser Fan Motor, 1/6 hp, 208-230 V, 60 Hz, 48 Frame, 825 rpm Speed
BrandDiversiTech®
MFG #WG840203
Keller #1085001
