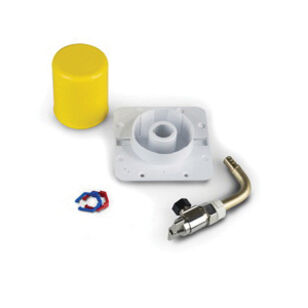

SIOUX 699-A1-XR OMEGA PLATE
SIOUX 699-A1-XR OMEGA PLATE
Sioux Chief ProPlate™ Valve Outlet Plate, 699 Series, 1/2 x 3/8 in Fitting, PEX x Compression Connection, 150 psig, 200 deg F, ABS/Brass, 2-1/2 in ID x 4 in OD Diameter, Domestic/Import: Domestic, Additional Information: 4-1/2 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$21.67 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSioux Chief
Additional Information4-1/2 " H
Connection TypePEX x Compression
Diameter2-1/2 " ID x 4 " OD
Domestic/ImportDomestic
Fitting Size1/2 x 3/8
IncludesDebris Cover
MaterialABS/Brass
Pressure Rating150
Series699 Series
Temperature Rating200
Additional Information
ASME A112.18.1|IAPMO Approved|NSF 372
Features & Benefits
- Installs at rough and incorporates valve, escutcheon, stub out and bracket in one product 1/4-turn ball valve with 3/8 in OD compression connection Patented, replaceable valve design
Marketing Information
Sioux Chief 699 Series ProPlate™ access product shall be used where necessary in plumbing systems for accessible mounting of water supply. Plate can secure directly to vertical stud or between studs. Install bracketing through integral track or affix box through flange holes. Supply line can be installed from above or below. Plate shall be supplied with 1/4-turn supply valve, having 1/4 and 3/8 in compression connection or 3/4 in male hose connection. Valve shall be -plated and replaceable with any common 5/8 in compression valve. Outlet connections should generally be provided with a test/tamper-resistant cap. Plate allows debris cover to thread in for protection during rough-in.
SIOUX 699-A1-XR OMEGA PLATE
BrandSioux Chief
MFG #699-A1-XR
Keller #1085407
My Part ##
Last Ordered#
$21.67 / ea
