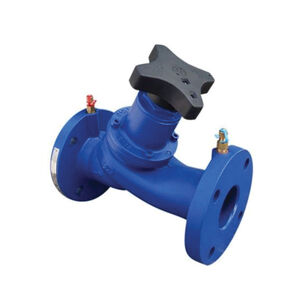

RWV® 9574P 6 CI Static Balancing Valve, 6 in, Flanged, 375.8 to 902 gpm, Iron
RWV® 9574P 6 CI Static Balancing Valve, 6 in, Flanged, 375.8 to 902 gpm, Iron
RWV® Static Balancing Valve, 6 in Nominal, Flanged Connection, 375.8 to 902 gpm Flow Rate, Handwheel Operator, Polyamide Handle, Brass Stem, DZR Brass Trim, Iron, Water Media, 18.9 in Inlet to Outlet Length, 11.2 in Top to Inlet Center, 15 to 260 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,484.81 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRWV®
Connection TypeFlanged
Flow Rate375.8 to 902
Handle MaterialPolyamide
Inlet to Outlet Length18.9
MaterialIron
MediaWater
Nominal Size6
Operator TypeHandwheel
Stem MaterialBrass
Temperature Rating15 to 260
Top to Inlet Center11.2
Trim MaterialDZR Brass
Additional Information
ANSI B16.10|ASME B16.1 Class 125|Buy American Act Compliant|EN558-1 Series 1
Features & Benefits
- Cast iron variable orifice double regulating globe valve Precision adjustable hand wheel Multi-turn adjustment (five full turns minimum) Positive shut-off with memory stop Indicator of regulating position on the hand wheel Alkyd/acrylic painted surface Valve accuracy +/-5% to nominal Cv value at fully open position Threaded and capped test ports PT ports included with valves (not mounted)
Documents
RWV® 9574P 6 CI Static Balancing Valve, 6 in, Flanged, 375.8 to 902 gpm, Iron
BrandRWV®
MFG #9574P 6
