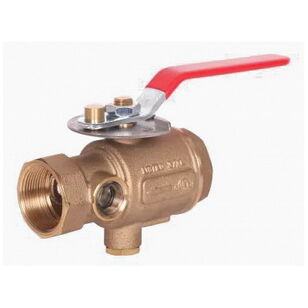

ANVIL® TrimFit® 06-850 Series 4324000506 Test and Drain Valve, 1 in, FNPT, Bronze
ANVIL® TrimFit® 06-850 Series 4324000506 Test and Drain Valve, 1 in, FNPT, Bronze
ANVIL® TrimFit® Test and Drain Valve, 06-850 Series, 1 in Nominal, FNPT Connection, Full Port, 175 psi, Lever Actuator, 3.02 in Top to Inlet Center, Bronze Body, RTRFE Seat, PTFE Stem, PTFE/RTRFE Trim, MPRTFE Packing, Steel/Vinyl Handle, Buna-N/MPRTFE/PTFE/RTRFE Softgoods, Contains Lead, 8.307 in L x 4.654 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$410.95 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandFPPI®
Actuator TypeLever
Body MaterialBronze
Connection TypeFNPT
Dimensions8.307 " L x 4.654 " H
Handle MaterialSteel/Vinyl
IndustryPlumbing
Nominal Size1
Packing MaterialMPRTFE
Port TypeFull
Pressure Rating175
Seat MaterialRTRFE
Series06-850 Series
Softgoods MaterialBuna-N/MPRTFE/PTFE/RTRFE
Stem MaterialPTFE
Top to Inlet Center3.02
Trim MaterialPTFE/RTRFE
Additional Information
cULus Listed|FM Approved
Features & Benefits
- Positive positioning of handle for off, test or drain Only two threaded connections Large, integral sight glass on both sides
Documents
Marketing Information
FPPI® TrimFit® TD test and drain valves feature heavy-duty brass construction for extended service life. TrimFit® TD features three positions closed, test and drain (open). Two large and integral sight glasses allow for maximum visibility when operated. Due to the compact and integrated form, TrimFit® TD valves can be installed in both horizontal and vertical orientations in a small amount of space. Available with threaded or grooved connections.
ANVIL® TrimFit® 06-850 Series 4324000506 Test and Drain Valve, 1 in, FNPT, Bronze
BrandFPPI®
MFG #4324000506
Keller #1092170
My Part ##
Last Ordered#
$410.95 / ea
