AISI 304 Specified|ANSI/NSF 61 Specified|ASTM A48-25B Specified|cULus Listed|EN 1.4301/1561 EN-GJL-200 Specified

• Two dedicated digital inputs Three analog inputs, 0(4) to 20 mA, 0 to 5 V, 0 to 10 V, 0.5 to 3.5 V 5 V voltage supply to potentiometer and sensor One analog output, 0 to 10 V, 0(4) to 20 mA Two configurable digital inputs or open collector outputs Two Pt100/Pt1000 inputs LiqTec, dry running protection sensor input Grundfos digital sensor input and output 24 V voltage supply for sensors Two signal relay outputs (potential-free contacts) GENIbus connection Interface for Grundfos CIM fieldbus module

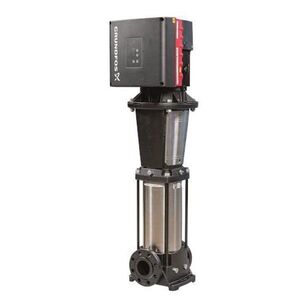

Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). The pump head and base are in cast iron - all other wetted parts are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via oval flanges with internal NPT threads. The pump is fitted with a 1 ph, fan cooled, permanent magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The operating panel on the motor terminal box features a 4 in TFT display, pushbutton and the Grundfos eye indicator. The display gives an intuitive and user friendly interface to all functions. The pushbutton are used to navigate through the menu structure to access pump and performance data on site and enable setting of required setpoint as well as setting of pump to "Min" or "Max" operation or to "Stop". Communication with the pump is also possible by means of Grundfos GO Remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption".
