AISI 304/316 Specified|cULus Listed|EN 1.4301/1.4408 Specified|NSF/ANSI 61 Specified

• The specially designed cartridge seal increases reliability, ensures safe handling and enables easy service and access Pump efficiency is maximized by the optimized hydraulics and carefully crafted production technology The patented Grundfos LiqTec system eliminates the risk of breakdowns due to dry running, If there is no liquid in the pump, the LiqTec will stop the pump immediately

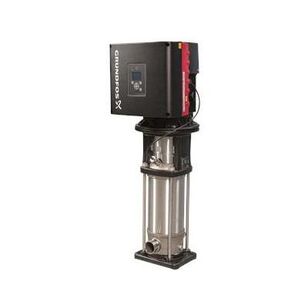

Vertical, multi-stage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in stainless steel. A cartridge shaft seal ensures high reliability, safe handling and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via FlexiClamps. The pump is fitted with a 3 ph, fan cooled, permanent magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The operating panel on the motor terminal box features a 4 in TFT display, pushbuttons and the Grundfos eye indicator. The display gives an intuitive and user friendly interface to all functions. The pushbuttons are used to navigate through the menu structure to access pump and performance data on site and enable setting of required setpoint as well as setting of pump to "Min" or "Max" operation or to "Stop". Communication with the pump is also possible by means of Grundfos GO remote (accessory). The remote control enables further settings as well as reading out of a number of parameters such as "Actual value", "Speed", "Power input" and total "Power consumption". The Grundfos eye indicator on the operating panel provides visual indication of pump status. The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required.
