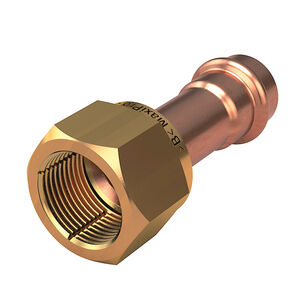

Conex Banninger MaxiPro MPA5285G0040401 ACR Flare Adapter, 1/2 in SAE Flared x 1/2 in Flared Nut, Copper
Conex Banninger MaxiPro MPA5285G0040401 ACR Flare Adapter, 1/2 in SAE Flared x 1/2 in Flared Nut, Copper
Conex Banninger MaxiPro ACR Flare Adapter, MPA5285G Series, Adapter Fitting, 1/2 in Connection Size 1, Connection Type 1: SAE Flared, 1/2 in Connection Size 2, Connection Type 2: Flared Nut, SAE Flared|Flared Connection, Copper, Material Construction: Copper, 0.95 in Hex, 2-1/2 in L, 700 psi, -40 to 250 deg F, Additional Information: HNBR O-ring/Seal Material
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$36.31Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandConex Banninger
Additional InformationHNBR O-ring/Seal Material
ApplicationRefrigeration and Air Conditioning Applications
Connection Size 11/2
Connection Size 21/2
Connection TypeSAE Flared|Flared
Connection Type 1SAE Flared
Connection Type 2Flared Nut
Dimensions2-1/2 " L
Fitting TypeAdapter
Hex Size0.95
IndustryHVAC
MaterialCopper
Material ConstructionCopper
Pressure Rating700
SeriesMPA5285G Series
Temperature Rating-40 to 250
Warranty15 Year
Additional Information
HNBR O-ring/Seal Material
Features & Benefits
- MaxiPro fittings are identified by a pink marking on the body The high quality HNBR O-ring has been specially formulated to operate in the temperature range of -40 to 250 deg F The profile has the advantage of two mechanical presses either side of the bead and one hydraulic press crimping the O-ring This provides a permanent and secure joint The lead-in edge design aids installation and helps protect the O-ring from damage or displacement
Marketing Information
B MaxiPro is an innovative press fitting that provides a secure, permanent and leak-proof joint suitable for both refrigeration and air conditioning applications.
