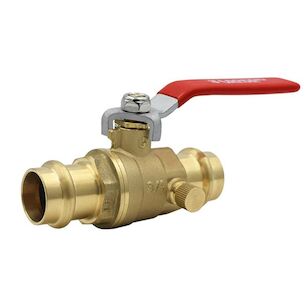

LEG 101-214NL 3/4 BRS LF BALL VALVE
LEG 101-214NL 3/4 BRS LF BALL VALVE
Legend Valve LegendPress® Ball Valve With Drain, P-202NL Series, 3/4 in Nominal, Press to Connect Connection, Full Port, 250 psi, 3.94 in Inlet to Outlet Length, 1.93 in Top to Inlet Center, Handle Operator, Material Standard: ASME SA6, ASTM B455 C38500, C46500, FR101, SA283 C, Brass Body, PTFE Seat, Brass Stem, EPDM Seal, PTFE Packing, Steel Handle, Brass Ball, Lead-Free, 180 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$60.01 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandLegend Valve
Ball MaterialBrass
Body MaterialBrass
Connection TypePress to Connect
Handle MaterialSteel
IndustryPlumbing
Inlet to Outlet Length3.94
Lead-FreeYes
Material StandardASME SA6, ASTM B455 C38500, C46500, FR101, SA283 C
Nominal Size3/4
Operator TypeHandle
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialEPDM
Seat MaterialPTFE
SeriesP-202NL Series
Stem MaterialBrass
Temperature Rating180
Top to Inlet Center1.93
Additional Information
ANSI/NSF 372|ANSI/NSF 61
Features & Benefits
- No lead forged
Marketing Information
Lead-free construction is suitable for all no lead potable water installations, in full compliance of the national lead-free plumbing law. Press-to-connect end connections are designed for installation onto ASTM B88 types K, L and M hard drawn copper tubing. Coiled (annealed) soft copper tubing is not recommended, but can be used if ends are made round. Eliminating the need for soldering, press type connections reduce labor and material costs and eliminate the fire hazard associated with the soldering process. End connections are compatible with commercially available VUS profile jaws. Waste drain allows line to be drained for maintenance or to prevent freeze-up, an ideal isolation/winterization valve for exterior sillcock installations.
LEG 101-214NL 3/4 BRS LF BALL VALVE
BrandLegend Valve
MFG #101-214NL
Keller #1096874
