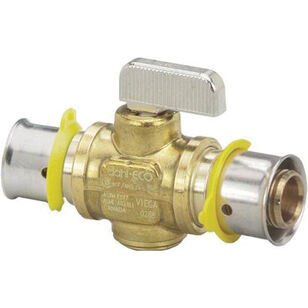

Viega PureFlow® 94521 Ball Valve, 1/2 in, Press, Brass, 160 psi
Viega PureFlow® 94521 Ball Valve, 1/2 in, Press, Brass, 160 psi
Viega PureFlow® Ball Valve, 1/2 in Nominal, Press Connection, Full Port, 160 psi, 1/2 in Orifice, 2.59 in Inlet to Outlet Length, 1.2 in Top to Inlet Center, Handle Operator, Material Standard: ASTM F1807, Brass Body, PTFE Seat, Brass Stem, EPDM/FKM Seal, Brass/EPDM/FKM/PTFE Trim, Zinc Handle, Brass Ball, EPDM/FKM Softgoods, Lead-Free, 0 to 180 deg F, 2.59 in L, Domestic/Import: Domestic, Additional Information: Model 2842.2ZL
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$27.01 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandViega
Additional InformationModel 2842.2ZL
ApplicationFor use with Viega PureFlow PEX, Viega FostaPEX, or Viega Barrier PEX
Ball MaterialBrass
Body MaterialBrass
Connection TypePress
Dimensions2.59 " L
Domestic/ImportDomestic
Handle MaterialZinc
IndustryPlumbing
Inlet to Outlet Length2.59
Lead-FreeYes
Map16.21
Material StandardASTM F1807
Nominal Size1/2
Operator TypeHandle
Orifice Size1/2
Port TypeFull
Pressure Rating160
Seal MaterialEPDM/FKM
Seat MaterialPTFE
Softgoods MaterialEPDM/FKM
Stem MaterialBrass
Temperature Rating0 to 180
Top to Inlet Center1.2
Trim MaterialBrass/EPDM/FKM/PTFE
Shipping Dimensions (L x W x H).75" x 1.88"
Additional Information
cCSAus Certified|cUPC Certified|NSF/ANSI 61-G, 372
Features & Benefits
- Easy and fast to install Factory assembled sleeve 1/4-turn operation Helps installers easily identify unpressed connections during pressure testing Corrosion-resistance
Documents
Marketing Information
The Viega PureFlow® Press® zero-lead ball valve is equipped with a full port, eco Brass® body. The ball valve also features PTFE seals with EPDM and FKM stem seals.
