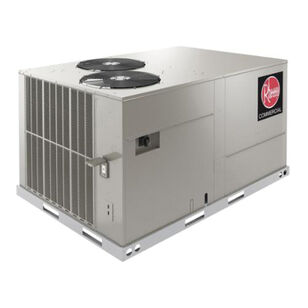

Rheem® RACDZR, Classic ZR120 RACDZR120ACA000AAAA0 Air Conditioner Package Unit, 10 ton Nominal, 208 to 230 VAC, 48 A
Rheem® RACDZR, Classic ZR120 RACDZR120ACA000AAAA0 Air Conditioner Package Unit, 10 ton Nominal, 208 to 230 VAC, 48 A
Rheem® Air Conditioner Package Unit, Series: RACDZR, Classic, Model: ZR120, 10 ton Nominal Capacity, 118000 Btu/hr Cooling BTU Rating, 208 to 230 VAC, 48 A, 34.57 kW Cooling, 1/3 hp Outdoor Fan HP Rating, 1075 rpm Outdoor Fan, 1725 rpm Indoor Fan Rotational Speed, 60 Hz, 3 ph, (1) Scroll Compressor, 4000 cfm Rating, 11.2 EER, 1 Stage, R-410A, HFC, 88 dBA, Low Static Belt Drive, Outdoor Coil - 25.6 sq-ft Face Area, 23 Fins/in, Indoor Coil - 10.9 sq-ft Face Area, 20 Fins/in Coil Rating, 3/4 in Drain Connection, (4) 2 x 20 x 20 in Filter, Steel, Galvanized, Pre-Painted, 125 deg F Ambient, 90-1/8 in L x 59-1/2 in W x 50 in H
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$22,210.19 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Amperage Rating48
CFM Rating4000
Coil RatingOutdoor Coil - 25.6 sq-' Face Area, 23 Fins/", Indoor Coil - 10.9 sq-' Face Area, 20 Fins/"
Compressor Type(1) Scroll
Connection Size3/4 " Drain
Cooling BTU Rating118000
Dimensions90-1/8 " L x 59-1/2 " W x 50 " H
Drive TypeLow Static Belt
EER Rating11.2
Filter Size(4) 2 x 20 x 20
FinishGalvanized, Pre-Painted
Frequency Rating60
HP Rating1/3 hp Outdoor Fan
IndustryHVAC
MaterialSteel
ModelZR120
Nominal Capacity10
Number of Stages1
Phase3
Refrigerant TypeR-410A, HFC
Rotational Speed1075 rpm Outdoor Fan, 1725 rpm Indoor Fan
SeriesRACDZR, Classic
Sound Level88
Temperature Rating125 deg F Ambient
Voltage Rating208 to 230
Wattage34.57 kW Cooling
Additional Information
AHRI Certified, C/US UL Listed, ISO 9001:2008 Certified, ASHRAE 90.1-2010 Compliant
Features & Benefits
- Wired and run tested Scroll compressors with internal line break overload and high-pressure protection Convertible air flow - vertical down flow or horizontal side flow Forkable base rails for easy handling and lifting Micro channel evaporator and condenser coil PlusOne ServiceSmart package includes: Qwik-Change Flex-Fit Rack, Qwik-Slide Blower Assembly, Qwik-Clean Drain Pan PlusOne diagnostics with dual seven-segment LED display One-piece top cover and one-piece base pan with drawn supply and return opening Two-piece control door 1/4 turn fasteners on filter access door Color-coded and labeled wiring External lockable gauge ports TXV refrigerant metering system Solid core liquid line filter drier High pressure and low pressure/loss of charge protection Insulation encapsulated throughout entire unit High performance belt drive motor with variable pitch pulleys and quick adjust belt system New product footprint with matching connections Improved factory lead times Major Series
Rheem® RACDZR, Classic ZR120 RACDZR120ACA000AAAA0 Air Conditioner Package Unit, 10 ton Nominal, 208 to 230 VAC, 48 A
BrandRheem®
MFG #RACDZR120ACA000AAAA0
Keller #1099006
My Part ##
Last Ordered#
$22,210.19 / ea
