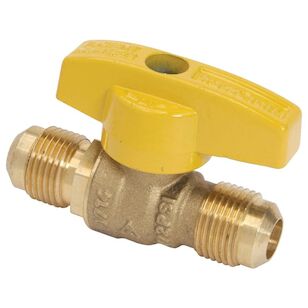

BrassCraft® TBVF6 Gas Ball Valve, 3/8 in, Flare, Brass, 5 psi
BrassCraft® TBVF6 Gas Ball Valve, 3/8 in, Flare, Brass, 5 psi
BrassCraft® Gas Ball Valve, 3/8 in Nominal, Flare Connection, 5 psi, 2.46 in Inlet to Outlet Length, 1.45 in Top to Inlet Center, Brass Body, PTFE Seat, Brass Stem, Aluminum Handle, -40 to 150 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$61.34 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandBrassCraft®
Body MaterialBrass
Connection TypeFlare
Handle MaterialAluminum
IndustryPlumbing
Inlet to Outlet Length2.46
Nominal Size3/8
Pressure Rating5
Seat MaterialPTFE
Stem MaterialBrass
Temperature Rating-40 to 150
Top to Inlet Center1.45
Additional Information
ANSI Z21.15/CSA 9.1|ANSI/ASME B16.44|CGA CR91-002
Features & Benefits
- Forged brass body eliminates pinhole leaks commonly associated with cast products Connects to 3/8 in. O.D. copper tube; requires flare nut for installation Use with natural, manufactured, mixed and liquefied petroleum (LP or propane) gases and LP gas-air mixtures Blow-out-proof stem assembled from the inside with double o-rings to ensure safe, reliable performance PTFE seats assure a tight seal and easy on & off operation even after long periods of inactivity Comfort-fit grip handle features an exclusive integration of the 'T' and lever handle designs 1/4 turn operation provides easy on & off flow control 100% Leak Tested
Documents
Marketing Information
BrassCraft's exclusive line of Italian-made gas ball valves are specially engineered to provide unsurpassed product performance. From the stem to the body to the exclusive handle design, every detail has been master crafted for ease of operation and installation. This valve can be installed in the gas line run of copper tubing. Requires a 3/8 in. O.D. flare nut to install.
BrassCraft® TBVF6 Gas Ball Valve, 3/8 in, Flare, Brass, 5 psi
BrandBrassCraft®
MFG #TBVF6
Keller #1099402
My Part ##
Last Ordered#
$61.34 / ea
