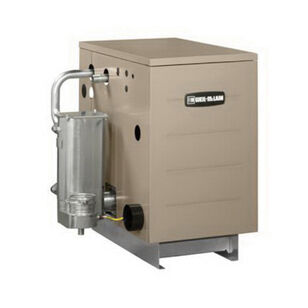

Weil-McLain® GV90+ Series GV90+4 382-200-611 Gas Fired Water Boiler, 91.2 % AFUE, 105000 Btu/hr BTU, 4.7 gal Capacity
Weil-McLain® GV90+ Series GV90+4 382-200-611 Gas Fired Water Boiler, 91.2 % AFUE, 105000 Btu/hr BTU, 4.7 gal Capacity
Weil-McLain® Gas Fired Water Boiler, GV90+ Series, Model: GV90+4, 91.2 % AFUE, 105000 Btu/hr BTU, 4.7 gal Capacity, 1/2 in Gas, 1 in Supply/Return Connection, Liquid Propane Gas, Natural Gas Fuel, Direct Exhaust, Direct Vent, Chimney/Breeching/Vent Size: 3 in Vent Dia, Hot Surface Ignition, Net BTU Rating: 84000 Btu/hr, Cast-Iron, Dimensions: 30-3/4 in H x 24-5/8 in W x 30-3/4 in D
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,673.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWeil-McLain®
AFUE Rating91.2
BTU Rating105000
Capacity4.7
Chimney/Breeching/Vent Size3 " Vent Dia
Connection Type1/2 " Gas, 1 " Supply/Return
Dimensions30-3/4 " H x 24-5/8 " W x 30-3/4 " D
Fuel TypeLiquid Propane Gas, Natural Gas
Ignition TypeHot Surface
IndustryHydronics
MaterialCast-Iron
ModelGV90+4
Net BTU Rating84000
SeriesGV90+ Series
Vent TypeDirect Exhaust, Direct
Additional Information
AHRI Certified, CSA Certified, ASME Approved, US green council Certified, Energy Star Certified
Features & Benefits
- 4-sections Durable design with low maintenance and factory tested Unique 7 pass heat exchanger design maximizes heat transfer Insulated extended steel jacket Cast iron sections with built-in air separator Condensing stainless steel secondary heat exchanger with air separator Steel base, control module with indicator lights, blower assembly with observation port Gas/air manifold assembly, gas/air orifice plate for natural gas and separate plate furnished for conversion to propane Stainless steel burner cone and ring assembly, negative regulation gas valve, hot surface ignition system, air pressure switch Stainless steel burner cone and ring assembly Built-in bypass circulator system with sensor for temperature control, condensate drain trap, sidewall vent termination kit, 40 V-A transformer, electrical junction box 30 lb/sq-in ASME relief valve Water temperature limit switch, section block temperature, limit switch, combination pressure temperature gauge, drain valve, flue thermal fuse 1 in minimum pipe size
Weil-McLain® GV90+ Series GV90+4 382-200-611 Gas Fired Water Boiler, 91.2 % AFUE, 105000 Btu/hr BTU, 4.7 gal Capacity
BrandWeil-McLain®
MFG #382-200-611
