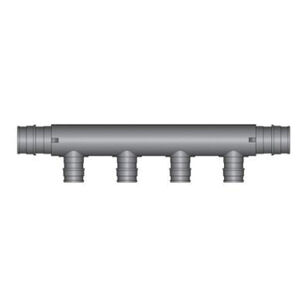

HeatLink® EX14000 Series EX14204 Open End Flow Through Multi-Port Tee, 3/4 in F1960 PEX x 3/4 in F1960 PEX x 3/4 in
HeatLink® EX14000 Series EX14204 Open End Flow Through Multi-Port Tee, 3/4 in F1960 PEX x 3/4 in F1960 PEX x 3/4 in
HeatLink® Open End Flow Through Multi-Port Tee, EX14000 Series, Tee Fitting, 3/4 in Connection Size 1, Connection Type 1: F1960 PEX, 3/4 in Connection Size 2, Connection Type 2: F1960 PEX, Connection Size 3: 3/4 in, Connection Type 3: F1960 PEX, PEX|PEX|PEX Connection, Polymer, Material Construction: Polymer, 7.64 in L x 1.18 in W, 100 psi, 180 deg F, Additional Information: 4-Ports, 0.59 x 0.59 x 0.39 in ID Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$25.05 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHeatLink®
Additional Information4-Ports, 0.59 x 0.59 x 0.39 " ID Dimensions
ApplicationFor PEXa potable water expansion systems
Connection Size 13/4
Connection Size 23/4
Connection Size 33/4
Connection TypePEX|PEX|PEX
Connection Type 1F1960 PEX
Connection Type 2F1960 PEX
Connection Type 3F1960 PEX
Dimensions7.64 " L x 1.18 " W
Fitting TypeTee
MaterialPolymer
Material ConstructionPolymer
Pressure Rating100
SeriesEX14000 Series
Temperature Rating180
Warranty25 Year
Additional Information
ANSI/NSF 14/61/372|cNSFus-pw Certified|cQAIus P371|CSA B137.5|ICC ES PMG 1087|IMC Compliant|IPC Certified|IRC Certified|NSPC Certified|ULC S102.2|UMC Certified|UPC Listed
Features & Benefits
- Better chemical resistance than other manufacturers Heat stability across a wide range of temperatures High continuous temperature use Exceptional hydrolytic stability High burst pressure rating Erosion-resistant can withstand aggressive water conditions Outstanding-resistance to hot chlorinated water
Marketing Information
The HeatLink® potable water system features PureLink® PEX-a tubing, high performance polymer (HPP) fittings and multi-port tees, no lead brass fittings and a choice of stainless steel press sleeve or PEX-a expansion ring connection technology. The unique HeatLink® PEX-a process is based on a method developed during the 1970's and uses organic peroxide to chemically cross-link the polyethylene during the manufacturing process. The PEX-a process produces a higher degree and greater uniformity in crosslinking, resulting product with significantly improved material properties with respect to temperature, pressure, strength and chemical resistance. Press sleeve technology has been used for decades worldwide in plumbing systems and has also been used extensively for pneumatic and hydraulic applications. HeatLink® superior potable water system carries all necessary approvals for North American installations and offers significant advantages and benefits in comparison to both copper and most common PEX plumbing systems in use today.
HeatLink® EX14000 Series EX14204 Open End Flow Through Multi-Port Tee, 3/4 in F1960 PEX x 3/4 in F1960 PEX x 3/4 in
BrandHeatLink®
MFG #EX14204
Keller #1101459
My Part ##
Last Ordered#
$25.05 / ea
