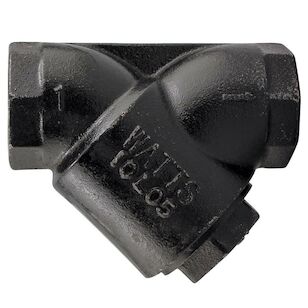

3 IN Astm A-126 Class B Cast Iron Wye Pattern Strainer Thread 1/16 Perforated Screen Tapped Retainer Cap
3 IN Astm A-126 Class B Cast Iron Wye Pattern Strainer Thread 1/16 Perforated Screen Tapped Retainer Cap
3 IN Astm A-126 Class B Cast Iron Wye Pattern Strainer Thread 1/16 Perforated Screen Tapped Retainer Cap
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,256.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Blowdown Outlet Connection TypeFemale Threaded
Blowdown Outlet Size1.5''
Body PatternWye
Class Rating126
Depth16"
Gasket MaterialGarlock
Height4.63"
IndustryPlumbing
Inlet Connection Size3"
Inlet Connection Size Metric80 mm
Inlet Connection TypeFemale Threaded
Inlet Thread TypeNPT
MaterialCast Iron
Outlet Connection Size3"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Plug MaterialCast Iron
Retainer Cover MaterialCast Iron
Retainer Cover TypeTapped with Closure Plug
Screen MaterialStainless Steel
Screen Size1/16''
Series77S
StrainerYes
Strainer TypeWye
Weight27.7 lbs.
Width8.5"
Wog Rating400 psi
Shipping Dimensions (L x W x H)16" x 8.5" x 4.63"
Features & Benefits
- Wye pattern
- Cast iron body
- Tapped retainer cap
- Threaded connection
- Stainless steel screen
Documents
Marketing Information
This 3 inch wye pattern strainer, has an iron body with 1/16 perforated screen, threaded connections, stainless steel screen, threaded iron retainer cap with non-asbestos gasket and tapped blowdown connection. It is designed to protect system components from dirt, rust and other damaging debris in the piping system. It is used in steam and liquid applications. It is furnished with a machined seat that allows the screen to be self-aligning to assure a perfect fit. Maximum pressure (non shock) 400 psi (27.6 bar) at 150 degree F (66 degree C) WOG, 250 psi (17.2 bar) at 406 degree F (208 degree C) WSP.
3 IN Astm A-126 Class B Cast Iron Wye Pattern Strainer Thread 1/16 Perforated Screen Tapped Retainer Cap
BrandWATTS®
MFG #0220344
Keller #1101772
