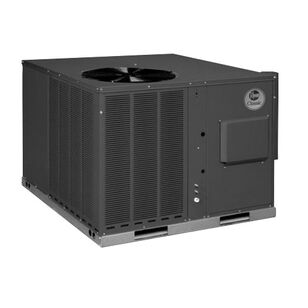

Rheem® Ovation Series RGEA14048AJT101AB Gas/Electric Package Unit, 48000 Btu/hr Input, 100000 MBtu/hr Output, 4 ton
Rheem® Ovation Series RGEA14048AJT101AB Gas/Electric Package Unit, 48000 Btu/hr Input, 100000 MBtu/hr Output, 4 ton
Rheem® Gas/Electric Package Unit, RGEA14, Classic® Series, 048AJT101AB Model, 48000 Btu/hr Input BTU Rating, 100000 MBtu/hr Output BTU Rating, 208/230 V Voltage Rating, 33 A Amperage Rating, 3.66 kW Wattage, 1/3 hp Outdoor Fan, 3/4 hp Indoor Fan HP Rating, 1075 rpm Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, Scroll Compressor Type, 1600 cfm Rating, 11 EER Rating, 14 SEER Rating, 81 % AFUE Rating, 4 ton Tonnage, 1 Number of Stages, 78 dBA Decibel Rating, 45 to 75 deg F Rise Temperature Rating, 47-1/2 in L x 52-7/16 in W x 41 in H Dimensions, Constant Torque Additional Information
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$13,623.72 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Additional InformationConstant Torque
AFUE Rating81
Amperage Rating33
ApplicationFor residential applications
CFM Rating1600
Compressor TypeScroll
Decibel Rating78
Dimensions47-1/2 " L x 52-7/16 " W x 41 " H
EER Rating11
Frequency Rating60
HP Rating1/3 hp Outdoor Fan, 3/4 hp Indoor Fan
IndustryHVAC
Input BTU Rating48000
Model048AJT101AB
Number of Stages1
Output BTU Rating100000
Phase1
Rotational Speed1075
SEER Rating14
SeriesRGEA14, Classic Series
Temperature Rating45 to 75 deg F Rise
Tonnage4
Voltage Rating208/230
Warranty10 Year on Conditional Parts, 10 Year on Compressor, 1 Year on Commercial
Wattage3.66
Additional Information
AHRI Certified, C/US UL Listed, Energy Guide
Features & Benefits
- All models feature Scroll® compressors for maximum efficiency and quiet operation 5 ton RGEA14/15 models feature UltraTech™ scroll two-stage compressors with comfort Alert™ diagnostics (see below), high/low pressure switches and hard start kits Louvered condenser compartment for protecting the coil against yard hazards and/or weather extremes One-piece top with a drip flange to help keep water out of the unit Supply and return air openings feature a one-in tall flange to prevent water migration into the ductwork Access panels have "weep holes" and channels to further help manage water run-off Side and down discharge options available on all models All models are shipped ready for horizontal application Easily accessible blower section complete with slide-out blower Refrigerant connections are conveniently located for easy service diagnostics Easily accessible control box Single-point wiring simplifies installation Our gas/electric package units feature a tubular heat exchanger design Models with a stainless steel heat exchanger installed in a residential application are backed by a limited lifetime warranty Thermal expansion valve standard on all models for superior superheat control, reliability and energy efficiency at all operating conditions Rugged base rail included for improved installation and handling Complete factory charged, wired and run-tested Molded compressor plugs A double sloped evaporator coil drain pan assures all water is removed from the unit to improve indoor air quality
