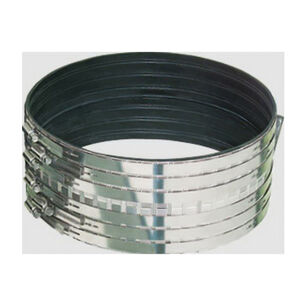

Tridon® 6231M8G Coupling, 12 in, Cast Iron, Stainless Steel
Tridon® 6231M8G Coupling, 12 in, Cast Iron, Stainless Steel
Tridon® Coupling, 12 in Fitting, Connection Type: Cast Iron, 150 in-lb Torque, Material Standard: ASTM C564, C1277, CISPI 310, Stainless Steel, -30 to 220 deg F, Domestic/Import: Domestic, Additional Information: 6-Clamp
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$338.77 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandTridon®
Additional Information6-Clamp
Connection TypeCast Iron
Domestic/ImportDomestic
Fitting Size12
IndustryPlumbing
MaterialStainless Steel
Material StandardASTM C564, C1277, CISPI 310
Temperature Rating-30 to 220
Torque Rating150
Additional Information
CSA B602|FM 1680|IAPMO 3198|UPC Certified
Features & Benefits
- Heavy-duty no-hub coupling A quality line of large diameter no-hub couplings Featuring 5/8 in W bands and 3/8 in hex head screws, provide optimum sealing force at 120 in-lb installation torque Provides greater sealing pressure around pipes of larger diameter than do conventional clamps Shield requires less band load to transfer pressure to the gasket, leaving more clamping load in reserve to compress the gasket Features a laterally spaced pattern of multiple thick sealing sectors and adjacent groove sectors When the clamps are tightened, this pattern permits the clamping bands and the shield to form a restriction impeding the movement of the shield relative to the gasket
Marketing Information
A quality line of standard-duty couplings that are assembled in Mexico using USA steel and gaskets. Manufactured with the same high-quality as our other couplings, but at a lower price point. In full compliance with ASTM 564, CISPI 310 and ASTM C1277 and also carries IAPMO, Canadian Standard Association and NSF certification.
