ASSE 1017 Specified|CSA Certified|cULus Listed|UL Listed

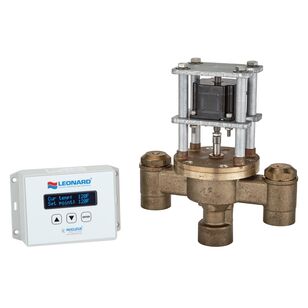

• Digital mixing valve with 3/4 in inlet angled check stops, 1 in outlet and integral RTD sensor Controls water temperature to +/-2 deg F in accordance with ASSE 1017 Controls water temperature to +/-2 deg F during times of low/no system demand Automatic hot/cold water shutoff upon cold/hot water inlet supply failure User programmable set point range between 65 deg F and 180 deg F UL listed control box UL listed 120 V plug in power supply with 6 ft cord Simple/intuitive user commissioning and setup Factory assembled and tested

In support of various states low lead laws, LEONARD® is pleased to offer the new Nucleus line of electronic mixing valves. These valves have all been certified as meeting the lead-free requirements. Note - lead-free is defined as "not more than a weighted average of 0.25% when used with respect to the wetted surfaces of pipes and pipe fittings, plumbing fittings and fixtures". In addition, these valves are all listed to the stringent performance requirements of the ASSE 1017 standard. Leonard's proton models give plumbing engineers outlet temperature control within +/-2 deg F from set point, regardless of demand. Features include user programmable set point, integral daily sweep.
