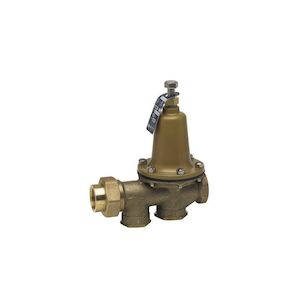

1 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female Polymer Seat Gauge Tapping High Range 75-125 psi
1 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female Polymer Seat Gauge Tapping High Range 75-125 psi
1 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female Polymer Seat Gauge Tapping High Range 75-125 psi
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,574.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi75.4 to 125
Depth6.75"
Disc MaterialEPDM
Height8.25"
High Pressure Reduced Pressure Range75 to 125 psi
High Pressure Reduced Pressure Setting90 psi
IndustryPlumbing
Inlet Connection Size1"
Inlet Connection TypeUnion Female Threaded
Inlet Thread TypeNPT
MaterialLead Free Copper Silicon Alloy
Maximum Temperature Deg F180
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size1"
Outlet Connection Thread TypeNPT
Outlet Connection TypeUnion Female Threaded
Prop 65 WarningYes
Seat MaterialPolymer
SeriesLF25AUB-Z3
Standard Reduced Pressure Setting Psi90
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight5.5 lbs.
Width4"
Shipping Dimensions (L x W x H)6.75" x 4" x 8.25"
Features & Benefits
- Integral bypass and stainless steel strainer
- Double union
- High pressure set at 90 psi
- With gauge tapping
Documents
Marketing Information
This 1 inch lead free water pressure reducing valve for high pressure ranges is equipped with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module, double union NPT threaded female inlet and outlet and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). The high pressure range is 75 to 125 psi (518 to 863 kPa) with the standard setting at 90 psi (621 kPa).
1 IN Lead Free Water Pressure Reducing Valve Double Union NPT Female Polymer Seat Gauge Tapping High Range 75-125 psi
BrandWATTS®
MFG #0009316
Keller #1104363
