NIBCO T-433-Y-2IN BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO T-433-Y-2IN BRZ CHECK VLV NOT FOR POTABLE USE
NIBCO® Horizontal Swing Check Valve, T-433-Y Series, 2 in Nominal, FPT Connection, 300 psi, Pressure Class: 150 lb, 366 deg F, Steam Media, 5-1/4 in Inlet to Outlet Length, 3.94 in Top to Inlet Center, 3-3/4 in Opening, Bronze Body, PTFE Seat, PTFE Disc, Bronze Trim, Bronze Softgoods, Contains Lead, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,433.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Body MaterialBronze
Connection TypeFPT
Disc MaterialPTFE
Domestic/ImportDomestic
IndustryPlumbing
Inlet to Outlet Length5-1/4
MediaSteam
Nominal Size2
Opening Size3-3/4
Pressure Class150
Pressure Rating300
Seat MaterialPTFE
SeriesT-433-Y Series
Softgoods MaterialBronze
Temperature Rating366
Top to Inlet Center3.94
Trim MaterialBronze
Shipping Dimensions (L x W x H)9.25" x 7.94" x 3.81"
Additional Information
MSS SP-80
Features & Benefits
- Y-pattern Renewable bronze disc Regrindable seat
Documents
Marketing Information

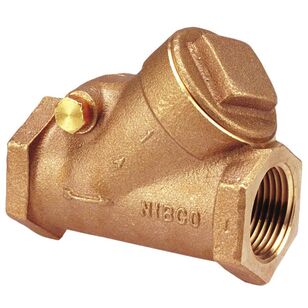

The NIBCO® bronze horizontal swing check valve has a Y-pattern design with renewable seat and disc. The swing check valve prevents backflow by automatically closing when fluid reverses direction. It features a screw-in bonnet for accessibility to repair or replace parts. The check valve is recommended for commercial and industrial steam, water, oil and gas services. The NIBCO® bronze check valve features threaded end connections for ease of installation. Swing checks may be installed in horizontal positions (or vertical with flow moving up). Choose NIBCO® check valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® check valves are backed by the NIBCO® 5 Year 125% limited warranty.
NIBCO T-433-Y-2IN BRZ CHECK VLV NOT FOR POTABLE USE
BrandNIBCO®
MFG #NL7K00D
Keller #110438
My Part ##
Last Ordered#
$1,433.00 / ea
