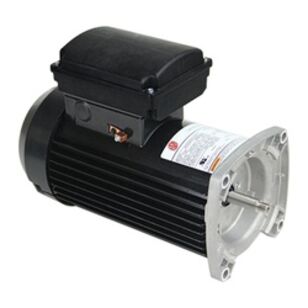

US Motors® AQUA-SHIELD™ PRO TEFC extreme-E® TEQ225 Pool and Spa Motor, Continuous Duty, 208-230/115 V, 1 ph-Phase

Name: US Motors® AQUA-SHIELD™ PRO TEFC extreme-E® TEQ225 Pool and Spa Motor, Continuous Duty, 208-230/115 V, 1 ph-Phase
Brand: EMERSON™
SKU: 1105468
Availability: InStock

EMERSON™

US Motors® AQUA-SHIELD™ PRO TEFC extreme-E® TEQ225 Pool and Spa Motor, Continuous Duty, 208-230/115 V, 1 ph-Phase

MFG #TEQ225

Item #1105468

Mfr. Part #TEQ225

UPC #

US Motors® Pool and Spa Motor, Continuous Duty Type, 208-230/115 V, 9.4 to 10.5 A, 18.8 A, 60 Hz, 1 ph, 2.25 hp HP Rating, 3450 rpm Speed Rating, 1 Speed, Clockwise, 13.1 in Shaft, Ball Bearing, Insulation Class: Class F, Service Factor: 1, TEFC Motor Enclosure Type, Square Flange Mount, Stainless Steel Housing, 13.849 in L x 7.125 in W x 10.06 in H, Additional Information: 2-Pole, 5-1/2 in Dia Stator, FHP Motor, 50 deg C Ambient, 48Y Motor Frame

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

Call for Price / ea

In Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandEMERSON™

Additional Information2-Pole, 5-1/2 " Dia Stator, FHP Motor, 50 deg C Ambient, 48Y Motor Frame

Amperage Rating9.4 to 10.5 A, 18.8 A

Bearing TypeBall

Dimensions13.849 " L x 7.125 " W x 10.06 " H"

Duty TypeContinuous

Frequency Rating60

Housing MaterialStainless Steel

HP Rating2.25

IndustryLeisure

Insulation ClassClass F

Motor Enclosure TypeTEFC

Mounting TypeSquare Flange

Number of Speeds1

Phase1

Rotation TypeClockwise

Service Factor1

Shaft Size13.1

Speed Rating3450

Voltage Rating208-230/115

US Motors® AQUA-SHIELD™ PRO TEFC extreme-E® TEQ225 Pool and Spa Motor, Continuous Duty, 208-230/115 V, 1 ph-Phase

BrandEMERSON™

MFG #TEQ225

Keller #1105468

My Part ##

Last Ordered#

Price

Call for Price / ea
