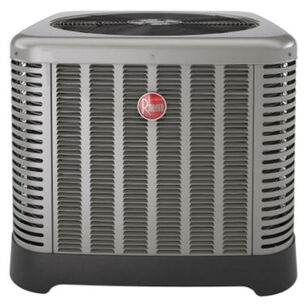

Rheem® RA1460CC1NB Air Conditioner Condenser, 208-230 V, 60000 Btu/hr
Rheem® RA1460CC1NB Air Conditioner Condenser, 208-230 V, 60000 Btu/hr
Rheem® Air Conditioner Condenser, RA14 Series, RA1460C Model, 60000 Btu/hr BTU Rating, 208-230 V Voltage Rating, 17.58 kW Wattage, 60 Hz Frequency Rating, 3 ph Phase, Scroll Compressor Type, 1550 cfm Rating, PSC Motor Type, 150 to 550 psig, 55 to 125 deg F Temperature Rating, Steel, Galvanized/Powder-Coated, 35-3/4 in L x 35-3/4 in W x 43 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,371.70 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
BTU Rating60000
CFM Rating1550
Compressor TypeScroll
Dimensions35-3/4 " L x 35-3/4 " W x 43 " H
FinishGalvanized/Powder-Coated
Frequency Rating60
MaterialSteel
ModelRA1460C
Motor TypePSC
Phase3
Pressure Rating150 to 550
SeriesRA14 Series
Temperature Rating55 to 125
Voltage Rating208-230
Wattage17.58
Additional Information
AHRI Certified|C/US UL Listed|Energy Guide Certified|ENERGY STAR® Certified
Features & Benefits
- Composite base pan dampens sound, captures louver panels, eliminates corrosion and reduces number of fasteners needed Powder-coat paint system for a long-lasting professional finish Scroll compressor uses 70% fewer moving parts for higher efficiency and increased reliability Modern cabinet aesthetics increased curb appeal with visually appealing design Curved louver panels provide ultimate coil protection, enhance cabinet strength and increased cabinet rigidity Optimized fan orifice-optimizes airflow and reduces unit sound Rust-resistant screws-confirmed through 1500 hr salt spray testing PlusOne™ expanded valve space-3, 4 and 5 in service valve space provides a minimum working area of 27 sq-in for easier access PlusOne™ triple service access-15 in W, industry leading corner service access makes repairs easier and faster, the two-fastener removable corner allows optimal access to internal unit components, individual louver panels come out once fastener is removed, for faster coil cleaning and easier cabinet reassembly Diagnostic service window with two-fastener opening provides access to the high and low-pressure External gauge port access allows easy connection of low loss gauge ports Single row condenser coil-makes unit lighter and allows thorough coil cleaning to maintain "out of the box" performance 35% fewer cabinet fasteners allow for faster access to internal components and hassle-free panel removal Service trays-hold fasteners or caps during service calls QR code-provides technical information on demand for faster service calls Fan motor harness with extra long wires allows unit top to be removed without disconnecting fan wire
Rheem® RA1460CC1NB Air Conditioner Condenser, 208-230 V, 60000 Btu/hr
BrandRheem®
MFG #RA1460CC1NB
Keller #1108787
My Part ##
Last Ordered#
$7,371.70 / ea
