HAY BYCN1040E1LGB 4IN BYCN PVC/PVC/EPDM/316/LEVER/GRAY/NSF61
HAY BYCN1040E1LGB 4IN BYCN PVC/PVC/EPDM/316/LEVER/GRAY/NSF61

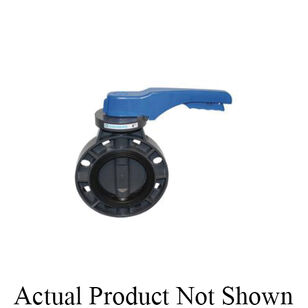

HAYWARD® Pure-Blu™ Butterfly Valve, Wafer Style, Series: BYCN, 4 in Nominal, 125 lb, 70 deg F, Lever Handle Actuator, 2.24 in Inlet to Outlet Length, 7.95 in Top to Inlet Center, PVC Body, PVC Disc, 316 Stainless Steel (Stem) Stem & Pin Material, EPDM, Gray
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandHAYWARD®
Actuator TypeLever Handle
Body MaterialPVC
ColorGray
Disc MaterialPVC
IndustryLeisure
Inlet to Outlet Length2.24"
Nominal Size4"
Pressure Class125 lbs.
SeriesBYCN
Softgoods MaterialEPDM
Stem & Pin Material316 Stainless Steel (Stem)
Temperature Rating70
Top to Inlet Center7.95"
TypeWafer Style
Additional Information
ASTM D1784 Class 12454|NSF/ANSI 61
Features & Benefits
- Fits ANSI 125 or PN10 flange patterns ISO 5211 mounting pad 9-position throttle plate Standard lockout handlever High flow capacity Low pressure Drop Booted seat EPDM liner
Marketing Information
BYCN Pure-Blu™ Series Butterfly Valve sizes 2 in. to 8 in. PVC Body and PVC Disc only. All liners and seals are EPDM. Type 316 Stainless Steel Shaft. BYCN Pure-Blu™ butterfly valves are offered with a lever handle or a gearbox.
HAY BYCN1040E1LGB 4IN BYCN PVC/PVC/EPDM/316/LEVER/GRAY/NSF61
BrandHAYWARD®
MFG #BYCN1040E1LGB
Keller #1110163
My Part ##
Last Ordered#
Call for Price / ea
