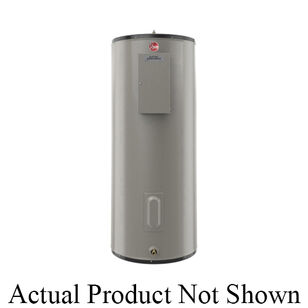

Rheem® ELD120 ELD120-FTB Light-Duty Electric Water Heater, 119.9 gal, 3 to 12 kW, 1 ph, 3 ph, 208 V
Rheem® ELD120 ELD120-FTB Light-Duty Electric Water Heater, 119.9 gal, 3 to 12 kW, 1 ph, 3 ph, 208 V
Rheem® Light-Duty Electric Water Heater, Model: ELD120, 119.9 gal Capacity, 3 to 12 kW, 0.91 to 0.95 Energy Factor, 6050 W Element Wattage, 208 V, 1 ph, 3 ph Phase, NPT Connection, 3/4 in Connection, 150 psi, Surface Mounting, Surface-Mounted Thermostat, Steel, 170 deg F, 62-1/2 in H x 28-1/4 in W, Non-Simultaneous, Simultaneous Wiring, Resistor, Screw-In Element, Copper Element
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$8,134.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
Capacity119.9
Connection Size3/4"
Connection TypeNPT
Dimensions62-1/2 " H x 28-1/4 " W
Element MaterialCopper
Element TypeResistor, Screw-"
Element Wattage6050
Energy Factor0.91 to 0.95
IndustryPlumbing
MaterialSteel
ModelELD120
Mounting TypeSurface
Phase1 ph, 3 ph
Power Rating3 to 12
Pressure Rating150
Temperature Rating170
Thermostat TypeSurface-Mounted
Voltage Rating208
Wiring TypeNon-Simultaneous, Simultaneous
Additional Information
ASHRAE Compliant|ASME Specified|CSA Certified|UL Listed
Features & Benefits
- Proprietary steel formulation with a unique-coat of high temperature porcelain enamel maximizes corrosion-resistance of the tank This prolongs the effective life of the anode rod and in turn, the life of the tank Our patented resistor elements are designed with a specially treated, double layer of magnesium oxide and copper to resist corrosion 2-1/2 in of rigid polyurethane foam insulation provides superior insulating qualities resulting in reduced operating costs A surface-mounted thermostat automatically cycles On and Off to maintain the water temperature at a desired preset level Factory installed brass drain valve allows for faster draining and servicing
Rheem® ELD120 ELD120-FTB Light-Duty Electric Water Heater, 119.9 gal, 3 to 12 kW, 1 ph, 3 ph, 208 V
BrandRheem®
MFG #ELD120-FTB
Keller #1110342
