ASSE 1012-2009|CSA B64.3-11

• Fast-fill rate on all models Exclusive fast-fill lever lock Built-in check to prevent emptying the system if incoming pressure fails Pressure setting adjustment separated from fast-fill lever for easy, fast adjustment 100 psi maximum supply side pressure, 30 psi relief valve setting, 12 psi factory setting

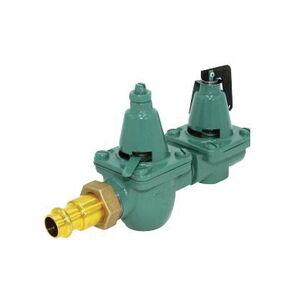

Taco boiler feed valves have set the standard for dependable service. The backflow preventer offers added protection, preventing the system from emptying if supply pressure should fail. Coupling dependable service with added protection into one quality product is Taco combination boiler feed and backflow preventer valve. The dual control combines the boiler feed with an in line pressure relief valve. These valves automatically feed water to a system whenever pressure in the system drops below the pressure setting of the valve. The dual control combines the boiler feed valve with an in line pressure relief valve connected at the outlet end. The backflow prevents contamination of the potable water system if supply pressure should fail.
