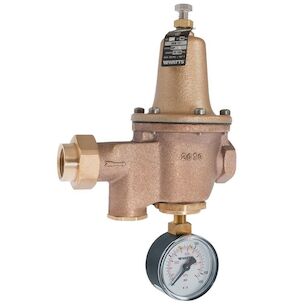

3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Range 75-100 psi Gauge Tapping Gauge
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Range 75-100 psi Gauge Tapping Gauge
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Range 75-100 psi Gauge Tapping Gauge
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,870.00Â /Â ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWATTS®
Adjustable Reduced Pressure Range Psi25 to 75
Corrosion Resistant CoatingYes
Depth6.75"
Disc MaterialReinforced EPDM
Height8.25"
High Pressure Reduced Pressure Range75 to 100 psi
High Pressure Reduced Pressure Setting75 psi
IndustryPlumbing
Inlet Connection Size3/4"
Inlet Connection TypeUnion Joint
Inlet Thread TypeNPT
MaterialBrass
Maximum Temperature Deg F160
Maximum Working Pressure Psi300
Minimum Temperature Deg F33
Outlet Connection Size3/4"
Outlet Connection Thread TypeNPT
Outlet Connection TypeFemale Threaded
Prop 65 WarningYes
SeriesLFU5B-Z3
Standard Reduced Pressure Setting Psi50
StrainerYes
Strainer MaterialStainless Steel
Thermal Expansion BypassYes
Valve StyleStandard
Weight5.3 lbs.
Width4"
Shipping Dimensions (L x W x H)6.75" x 4" x 8.25"
Features & Benefits
- High pressure applications with gauge tapping and gauge
- Integral stainless steel strainer removable for cleaning
- Serviceable in line without special tools
- Bypass feature controls thermal expansion pressure
Documents
Marketing Information
This 3/4 inch lead free brass high performance water pressure reducing valve is equipped for high pressure ranges with gauge tapping and a 160 psi (11.0 bar) gauge. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).
3/4 IN Lead Free Water Pressure Reducing Valve NPT Female Union x NPT Female High Range 75-100 psi Gauge Tapping Gauge
BrandWATTS®
MFG #0009120
Keller #1113464
