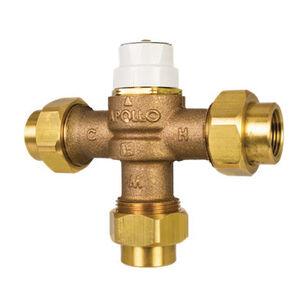

Apollo® 34BLF Series 34BLF314T Thermostatic Mixing Valve, 3/4 in Nominal, FNPT, 0.5 gpm, 150 psig, 210 deg F
Apollo® 34BLF Series 34BLF314T Thermostatic Mixing Valve, 3/4 in Nominal, FNPT, 0.5 gpm, 150 psig, 210 deg F
Apollo® Thermostatic Mixing Valve, 34BLF Series, 3/4 in Nominal, FNPT Connection, 150 psig, 0.5 gpm Flow Rate, Water Media, 1.87 in Orifice, 2.93 in Inlet to Outlet Length, 3.13 in Top to Inlet Center, Bronze Body, 210 deg F, 8-1/2 in ID x 10-1/4 in OD x 6 in H, Domestic/Import: Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$709.66 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandApollo®
Body MaterialBronze
Connection TypeFNPT
Dimensions8-1/2 " ID x 10-1/4 " OD x 6 " H
Domestic/ImportDomestic
Flow Rate0.5
Inlet to Outlet Length2.93
MediaWater
Nominal Size3/4
Orifice Size1.87
Pressure Rating150
Series34BLF Series
Temperature Rating210
Top to Inlet Center3.13
Warranty5 Year
Additional Information
ASME A112.1070-2015|ASSE 1017, 1069, 1070.2015|CSA B125.70-15|NSF/ANSI 372
Features & Benefits
- Low-lead compliant Superior thermostatic element technology for optimum reliability, dependability and accuracy Integral strainers and check valves provide protection against cross flow and foreign particles Thermostat over temperature protection Tamper-resistant maximum temperature setting adjustment Instantaneous cold or hot water supply failure shut-off protections Made in USA
Documents
Marketing Information
The Apollo® 34BLF Series thermostatic mixing valves are designed to control and limit the volumes of cold and hot water required to deliver mixed water at a pre-determined temperature either from the point-of source or point-of use application for single or multiple fixtures. The valves are built using lead-free materials and can be configured with several design features depending on your application. Now triple listed to ASSE 1017, 1069 and 1070 and a minimum flow rate of 0.5 gpm.
Apollo® 34BLF Series 34BLF314T Thermostatic Mixing Valve, 3/4 in Nominal, FNPT, 0.5 gpm, 150 psig, 210 deg F
BrandApollo®
MFG #34BLF314T
Keller #1116001
My Part ##
Last Ordered#
$709.66 / ea
