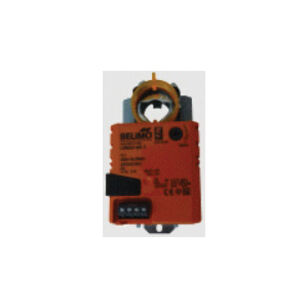

EWC LM-24SR-T MODULATING MOTOR ACTUATOR
EWC LM-24SR-T MODULATING MOTOR ACTUATOR
EWC® Motor Actuator, 24 V, 50/60 Hz, 1.5 W, 3 VA VA Rating, Screw Terminal, 95 s, 45 in-lb Torque, <35 dBA, -22 to 122 deg F, NEMA 1, 5 to 95% RH Humidity Rating, 4.58 in H x 2.6 in W x 2.3 in D, 1.5 W, CW, CCW
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$580.62 / ea
In Stock
- Attributes
- Documents
- Marketing Information
Attributes
BrandEWC®
Dimensions4.58" H x 2.6" W x 2.3" D
Electrical ConnectionScrew Terminal
Enclosure TypeNEMA 1
Frequency Rating50/60 Hz
Humidity Rating5 to 95% RH
IndustryHVAC
Noise Level<35 dBA
Power Consumption1.5 W
Power Rating1.5 W
Rotation TypeCW, CCW
Temperature Rating-22 to 122 deg F
Timing Range95 s
Torque Rating45"-lb
VA Rating3 VA
Voltage Rating24 V
Warranty5 Year
Shipping Dimensions (L x W x H)6" x 6" x 5"
Documents
Marketing Information
The MA-LM24SR-T motor actuators are easy to install, easy to wire up and come with a 5 years warranty. The superior design insures long life and no maintenance. The UL listed motor actuator is a 2-10 VDC proportional controlled actuator rated at 45 lb-in of torque and 95 sec rotation time. It includes an integrated terminal block and NEMA 1 rated housing. End stop adjustment allows for a percentage of relief air (leakage) to be set when the damper is powered to close. Optional model S1A, auxiliary end switch can be added for control of auxiliary devices. The MA-LM24SR-T can be controlled from any 2-10 VDC or 4 to 20 mA control. The actuator can also be controlled with the optional manual positioner (model MP) or proportional thermostat (model EWT-P).
EWC LM-24SR-T MODULATING MOTOR ACTUATOR
BrandEWC®
MFG #MA-LM24SRT
Keller #1116071
My Part ##
Last Ordered#
$580.62 / ea
