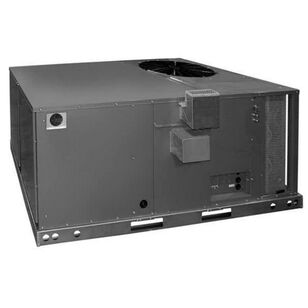

Rheem® Optimum Series RKQN-A048JK13E Electric Heat Package Unit, 48000 Btu/hr Cooling, 135000 Btu/hr Heating Input
Rheem® Optimum Series RKQN-A048JK13E Electric Heat Package Unit, 48000 Btu/hr Cooling, 135000 Btu/hr Heating Input
Rheem® Electric Heat Package Unit, RKQN, Classic Series, A048JK13 Model, 48000 Btu/hr Cooling, 135000 Btu/hr Heating Input BTU Rating, 208/230 VAC Voltage Rating, 33 A Amperage Rating, 14.07 kW Wattage, 1/3 hp Outdoor Fan, 3/4 hp Indoor Fan HP Rating, 1075 rpm Outdoor Fan, 1075 rpm Indoor Fan Rotational Speed, 60 Hz Frequency Rating, 1 ph Phase, (1) Scroll Compressor Type, 1600 cfm Rating, 12.5 EER Rating, 15 SEER Rating, 0.81 AFUE Rating, 4 ton Tonnage, R-410A, HFC Refrigerant Type, 78 dBA Decibel Rating, Electric Ignition Type, Direct Drive Type, Outdoor Coil - 16.4 sq-ft Face Area, 23 Fins/in, Indoor Coil - 4.8 sq-ft Face Area, 20 Fins/in Coil Rating, Connection Type: 3/4 in Drain, Steel, Galvanized, Baked Enamel-Coated, 125 deg F Ambient Temperature Rating, 75-17/32 in L x 46-1/2 in W x 35 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$11,322.23 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandRheem®
AFUE Rating0.81
Amperage Rating33
ApplicationFor low temperature use
CFM Rating1600
Coil RatingOutdoor Coil - 16.4 sq-' Face Area, 23 Fins/", Indoor Coil - 4.8 sq-' Face Area, 20 Fins/"
Compressor Type(1) Scroll
Connection Type3/4 " Drain
Decibel Rating78
Dimensions75-17/32 " L x 46-1/2 " W x 35 " H
Drive TypeDirect
EER Rating12.5
FinishGalvanized, Baked Enamel-Coated
Frequency Rating60
HP Rating1/3 hp Outdoor Fan, 3/4 hp Indoor Fan
Ignition TypeElectric
Input BTU Rating48000 Btu/hr Cooling, 135000 Btu/hr Heating
MaterialSteel
ModelA048JK13
Phase1
Refrigerant TypeR-410A, HFC
Rotational Speed1075 rpm Outdoor Fan, 1075 rpm Indoor Fan
SEER Rating15
SeriesRKQN, Classic Series
Temperature Rating125 deg F Ambient
Tonnage4
Voltage Rating208/230
Wattage14.07
Additional Information
AHRI Certified, C/US UL Listed, Energy Star Certified
Features & Benefits
- Complete factory charged, wired and run tested Scroll compressors with internal line break overload and high-pressure protection One-stage compressor on all models, convertible air flow TXV refrigerant metering device High pressure and low pressure/loss of charge protection standard on all models Solid core liquid line filter drier One-slab, micro-channel designed evaporator coil facilitates easy cleaning for maintained high efficiencies Easily removable filter, blower, gas heat and compressor/control access panels permits prompt service One-piece top cover and one-piece base pan with drawn supply and return opening for superior water management Externally mounted refrigerant gauge ports for easy service diagnostics Easy to install plug-in, slip-in, 100% fully modulating economizer Forkable base rails for easy handling and lifting, one-point electrical and gas connections Direct drive or high performance belt drive motor with variable pitch pulleys and quick adjust belt system Permanently lubricated evaporator, condenser and gas heat inducer motors Condenser motors are internally protected, totally enclosed with shaft down design 1 in filter standard with slide-out design, will accept 2 in filter One-stage gas valve, direct spark ignition and induced draft for efficiency and reliability Improved gas heating efficiency (81% AFUE) Tubular heat exchanger for long life and induced draft for efficiency and reliability, solid state furnace control with on board diagnostics Colored and labeled wiring
