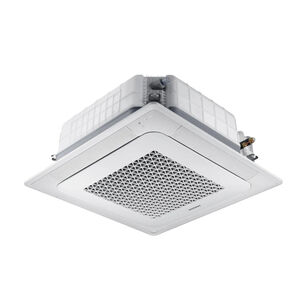

Samsung WindFree™ DVM S Series AM024RN4DCH/AA 4-Way Cassette Indoor Unit, 208 to 230 V, 0.45 A, 1 ph Phase, HIPS/Steel
Samsung WindFree™ DVM S Series AM024RN4DCH/AA 4-Way Cassette Indoor Unit, 208 to 230 V, 0.45 A, 1 ph Phase, HIPS/Steel
Samsung 4-Way Cassette Indoor Unit, DVM S Series, 208 to 230 V, 0.45 A, 57 W, 60 Hz, 1 ph, 3 Fan Speeds, 24000 Btu/hr Cooling, 27000 Btu/hr Heating, 583 to 865 cfm, Connection Type: Flared, 3/8 x 5/8 in Connection, R-410A Refrigerant, 15 A Fuse Rating, Tonnage: 2 ton, 38 dBA Sound Level, HIPS/Steel, 33-1/16 in Overall Length, 33-1/16 in Overall Width, 9-11/16 in Overall Height, For Use With: DVM S Water and DVM S Eco Systems, Samsung DVM S, Additional Information: 5/8 in Gas Pipe Size, 3/8 in Liquid Pipe Size, 1 in ID x 1-1/4 in OD Condensate Size, 37-3/8 in L x 37-3/8 in W x 2-1/2 in H Fascia Panel
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,679.48 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information5/8 " Gas Pipe Size, 3/8 " Liquid Pipe Size, 1 " ID x 1-1/4 " OD Condensate Size, 37-3/8 " L x 37-3/8 " W x 2-1/2 " H Fascia Panel
Amperage Rating0.45
BTU Rating24000 Btu/hr Cooling, 27000 Btu/hr Heating
CFM Rating583 to 865
Connection Size3/8 x 5/8
Connection TypeFlared
Correct Item GroupOther Mini Split Indoor
Frequency Rating60
Fuse Rating15
MaterialHIPS/Steel
Number of Fan Speeds3
Overall Height9-11/16
Overall Length33-1/16
Overall Width33-1/16
Phase1
Power Rating57
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level38
Suitable For Use WithDVM S Water and DVM S Eco Systems, Samsung DVM S
Tonnage2
Voltage Rating208 to 230
Additional Information
cETLus Listed|UL 1995
Features & Benefits
- Compatible with Samsung DVM S, DVM S Water, and DVM S Eco systems (AM**********AA) Electro-static, washable, pleated filters as standard (included with fascia panel) Built in condensate pump with maximum 29" lift from the bottom of the unit, check valve, and float switch that disables indoor unit during overflow detection Knock-out for outside air capability Fascia panel shall have LED indicator lights and 4 motorized louvers with independent control (32 deg - 65 deg louver control range) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection WindFree™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The WindFree™ feature is optional and can be enabled using central or local control options (MWR-SH11UN, MWR-WE13N, MWR-WE13UN, MWR-WG00*N, and AR-EH03U only) The WindFree™ 4-way cassette can be configured for 2-stage operation, cooling the space with the louver open (fixed or swing) until the room temperature nears set temperature. Once room temperature is near set temperature, WindFree™ operation will start automatically, closing the louver and using the face of the fascia panel to gently cool the space with still air The WindFree™ panel (PC4NUFMUN) has an integral humidity sensor that will open the louvers for standard cool mode when space conditions could potentially cause condensation formation on the panel surface Insulated, HIPS chassis with a galvanized steel frame and fascia panel certified to UL94 V0 The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single turbo type Three fan speed settings and auto settings The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution Control wiring shall be 2 X 16 AWG shielded wire
Documents
Marketing Information
Samsung's WindFree™ 4-Way Cassette uses thousands of micro holes to distribute air throughout the space without blowing directly on the occupants. The WindFree™ unit delivers an air current that is under 0.15 m/s while in WindFree™ mode. Air velocity that is below 0.15 m/s is considered still air as defined by ASHRAE 55-2013 (American Society of Heating, Refrigerating, and Air-Conditioning Engineers).
