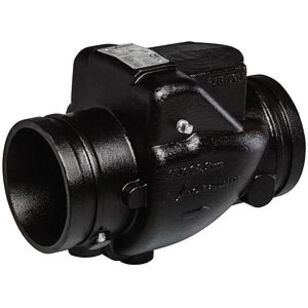

VIC V024716PE3 2 1/2 CKV 716H E VIC-CHECK VALVE

Name: VIC V024716PE3 2 1/2 CKV 716H E VIC-CHECK VALVE
Brand: Victaulic®
SKU: 1124695
Price: 1753 USD
Availability: InStock

Victaulic®

VIC V024716PE3 2 1/2 CKV 716H E VIC-CHECK VALVE

MFG #V024716PE3

Item #1124695

Mfr. Part #V024716PE3

UPC #688304656439

Victaulic® High Pressure Check Valve, 716H Series, 2-1/2 in Nominal, Grooved Connection, 365 psi, Water Media, 9.38 in Inlet to Outlet Length, 3.38 in Top to Inlet Center, Ductile Iron Body, Nickel Seat, Stainless Steel Disc, Nickel/Stainless Steel Trim, EPDM Softgoods, Black, Finish: Electroless Nickel-Plated, -30 to 230 deg F, 2-7/8 in OD

Why Create an Account?

Ability to track orders
More Options & Savings
Amazing Customer Service

$1,753.00 / ea

In Stock

Attributes
Additional Information
Features & Benefits
Documents

Attributes

BrandVictaulic®

ApplicationFor prevents back flow, single-disc mechanism incorporates a spring-assisted feature for non-slamming operation, can be installed either vertically (flow upwards only) or horizontally, valve body cast with arrow indicator to assist with proper valve orien

Body MaterialDuctile Iron

ColorBlack

Color/FinishElectroless Nickel-Plated

Connection TypeGrooved

Dimensions2-7/8 " OD

Disc MaterialStainless Steel

FinishElectroless Nickel-Plated

IndustryPlumbing

Inlet to Outlet Length9.38

MediaWater

Nominal Size2-1/2

Pressure Rating365

Seat MaterialNickel

Series716H Series

Softgoods MaterialEPDM

Temperature Rating-30 to 230

Top to Inlet Center3.38

Trim MaterialNickel/Stainless Steel
